Mercedes 2.7L OM612-OM647 Diesel Sprinter Van 2001-2006 Bypass Oil Filter
Mercedes 2.7L OM612-OM647 Diesel Sprinter Van 2001-2006 Bypass Oil Filter
Couldn't load pickup availability
2001-2006 Sprinter Van Bypass Oil Filter Kit, Models OM612- OM647
(Mercedes, Freightliner, Dodge)

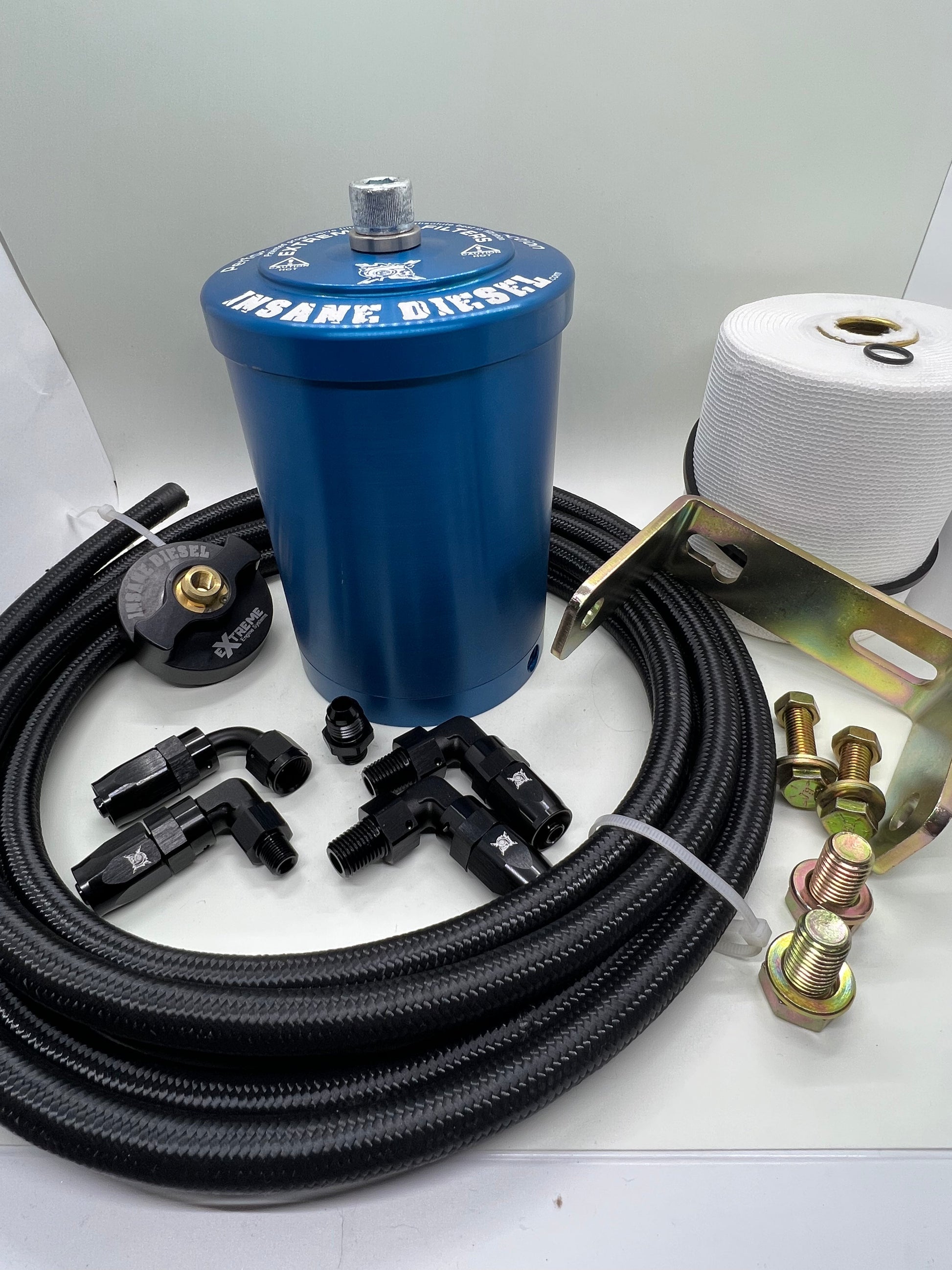

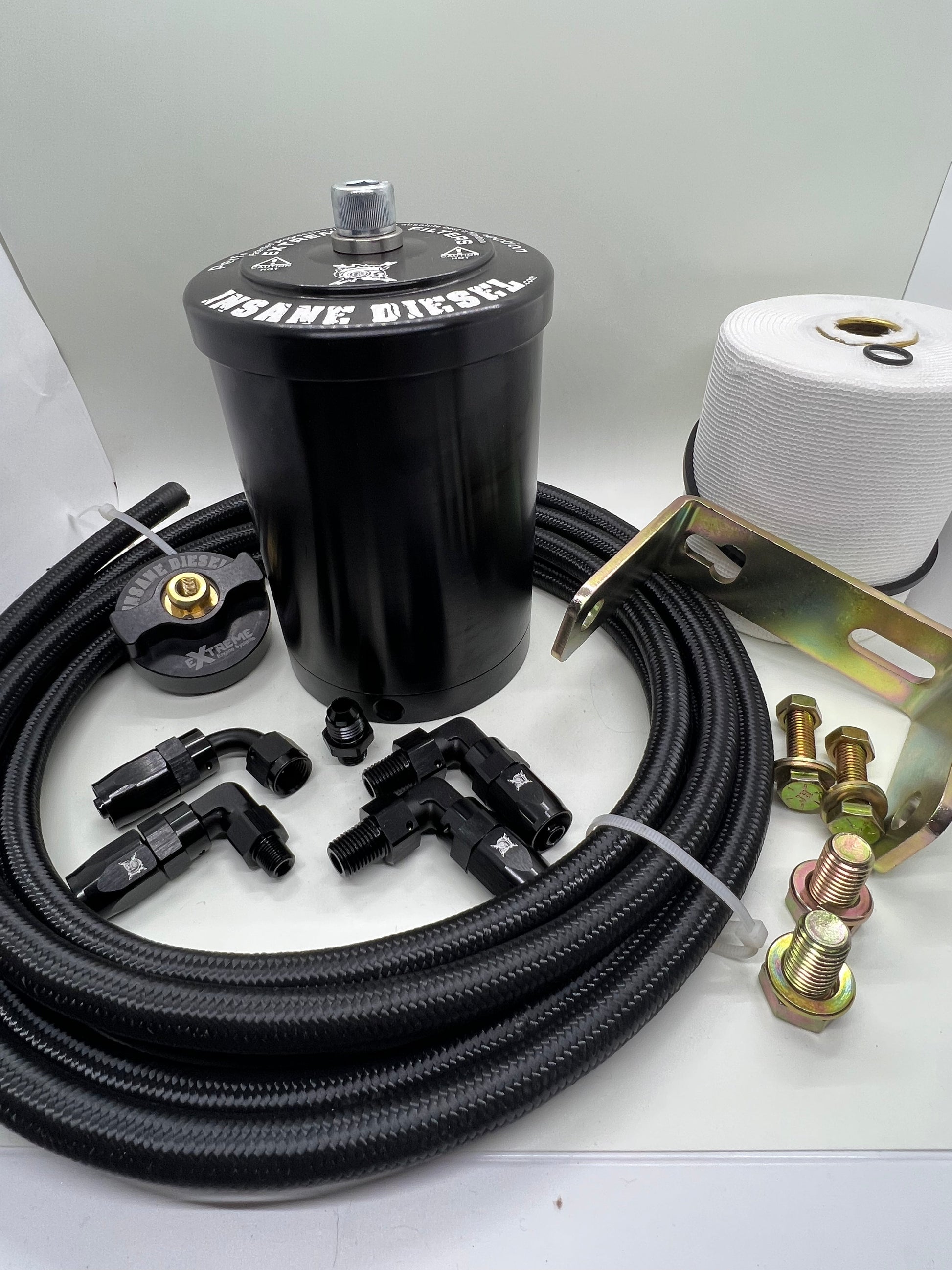

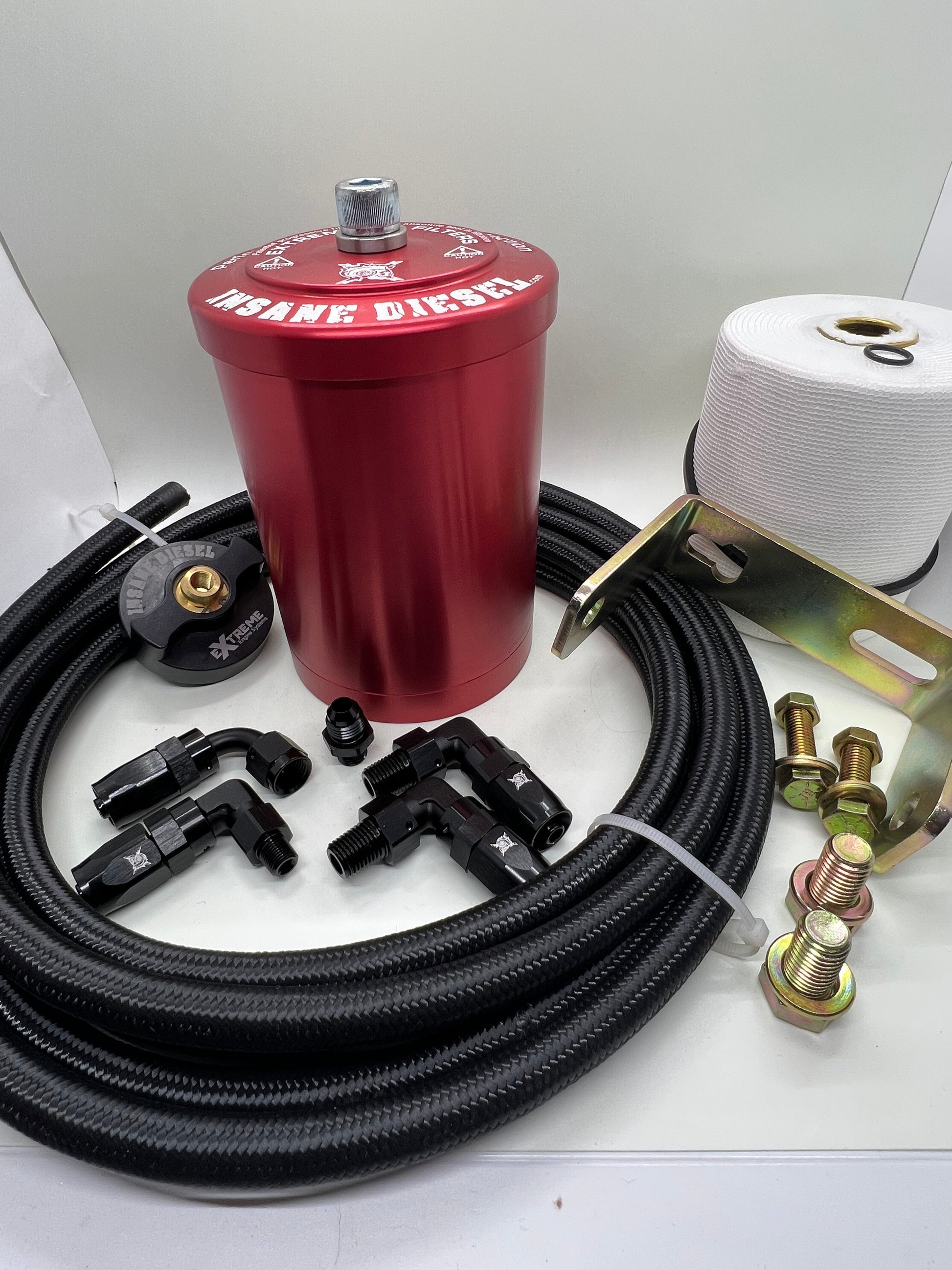

Parts Included In This Kit

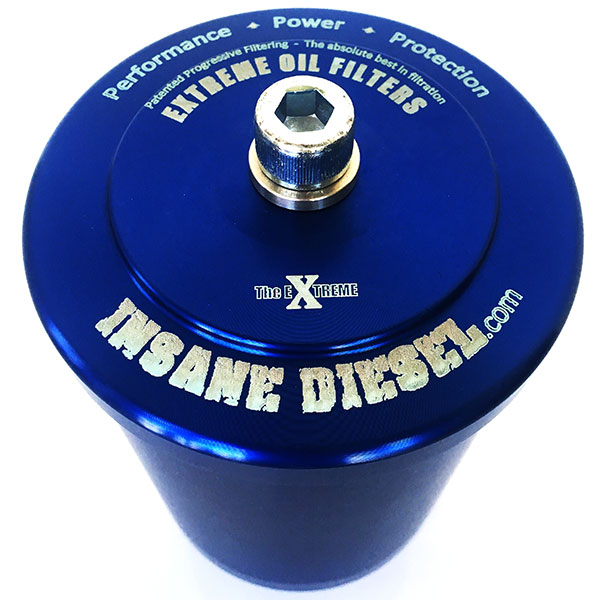

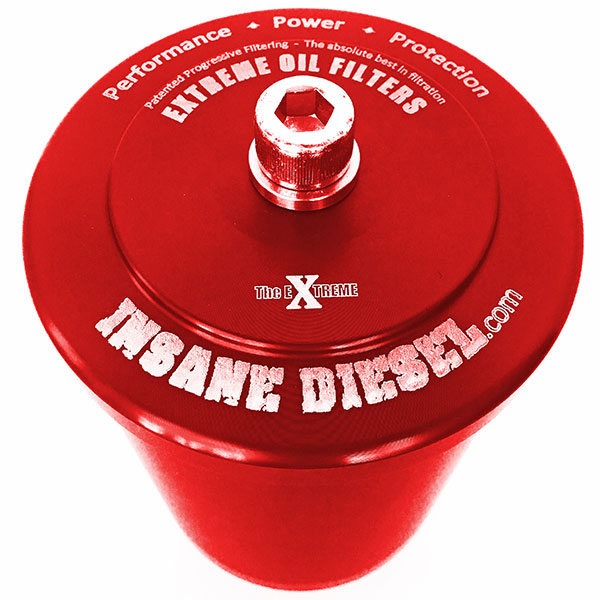

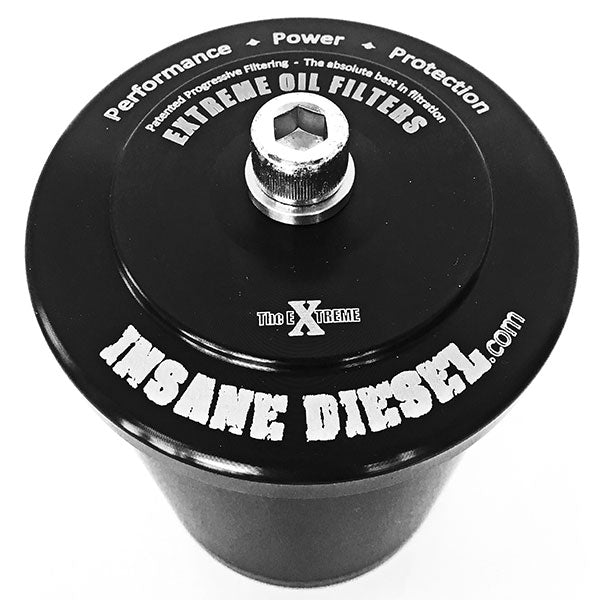

- 1 EXTREME 2 bypass oil filter housing (HX2SHBK) (HX2SHBLU) (HX2SHRED)
- 1 EXTREME 2 filter element (EX1SE) with o-rings (GX1/2)
- 2 In/Out fittings (AN06-04MS90)
- 1 Mounting bracket and hardware (ZBRCKX12)
Pressure Port
- 1 Pressure port fitting (AN06-12MMX1.5) with o-ring (O12) with fitting (AN06-06FJ90)
Return Port

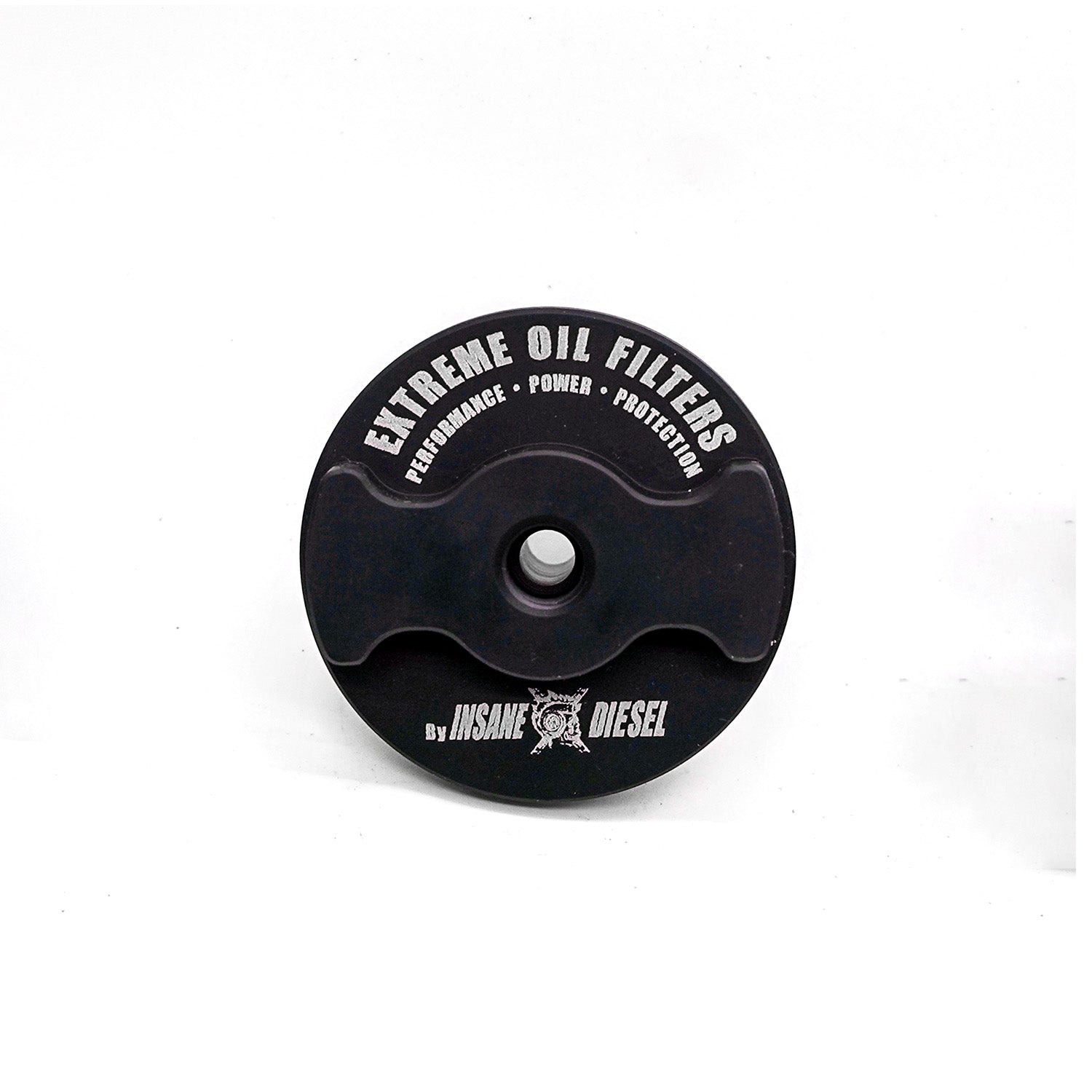

- 1 Oil filler cap (FLLCVW02) with gasket (OVW) with fitting (AN06-02MS90)
- 10ft of hose to cut to your preference (LW06BK)
Pressure port location
- Oil pressure test port plug is on left front side of engine block next to air conditioner compressor.
- Use a 6mm allen wrench to remove plug
- Install M125 pressure port fitting
- Connect elbow hose fitting
Installation Guide
• This kit does not have an official mounting location yet, please refer to the "custom installations and mounting details"
• Watch the general installation video for more information
BENEFITS OF ULTRA-FINE OIL FILTRATION
• Radically extend engine life 2X
• Reduce engine wear
• Keep oil up to 4X cleaner than new oil
• Progressive 3 stage filtration down to 1 micron, won't clog or drop efficiency like others filters
• Reduce soot and carbon buildup
• Reduce erosion of hoses & seals
• Extend oil change intervals
• Remove 99.9% of moisture
• Improve gas mileage
• Improve oil cooling
• Large housing holds 4000X more contaminants than OEM filters
• Easy installation and maintenance
• 15K (or up to *25K miles) 250 hours, or 1 year before maintenance is needed
• *Condition based oil analysis monitoring recommended when extending oil/filter change intervals
Learn More About the EXTREME Bypass Oil Filter System Here
