GMC/Chevrolet 5.3/6.0/6.2 Bypass Oil Filter Kit - 2009-Present

GMC/Chevrolet 5.3/6.0/6.2 Bypass Oil Filter Kit
2009-Present

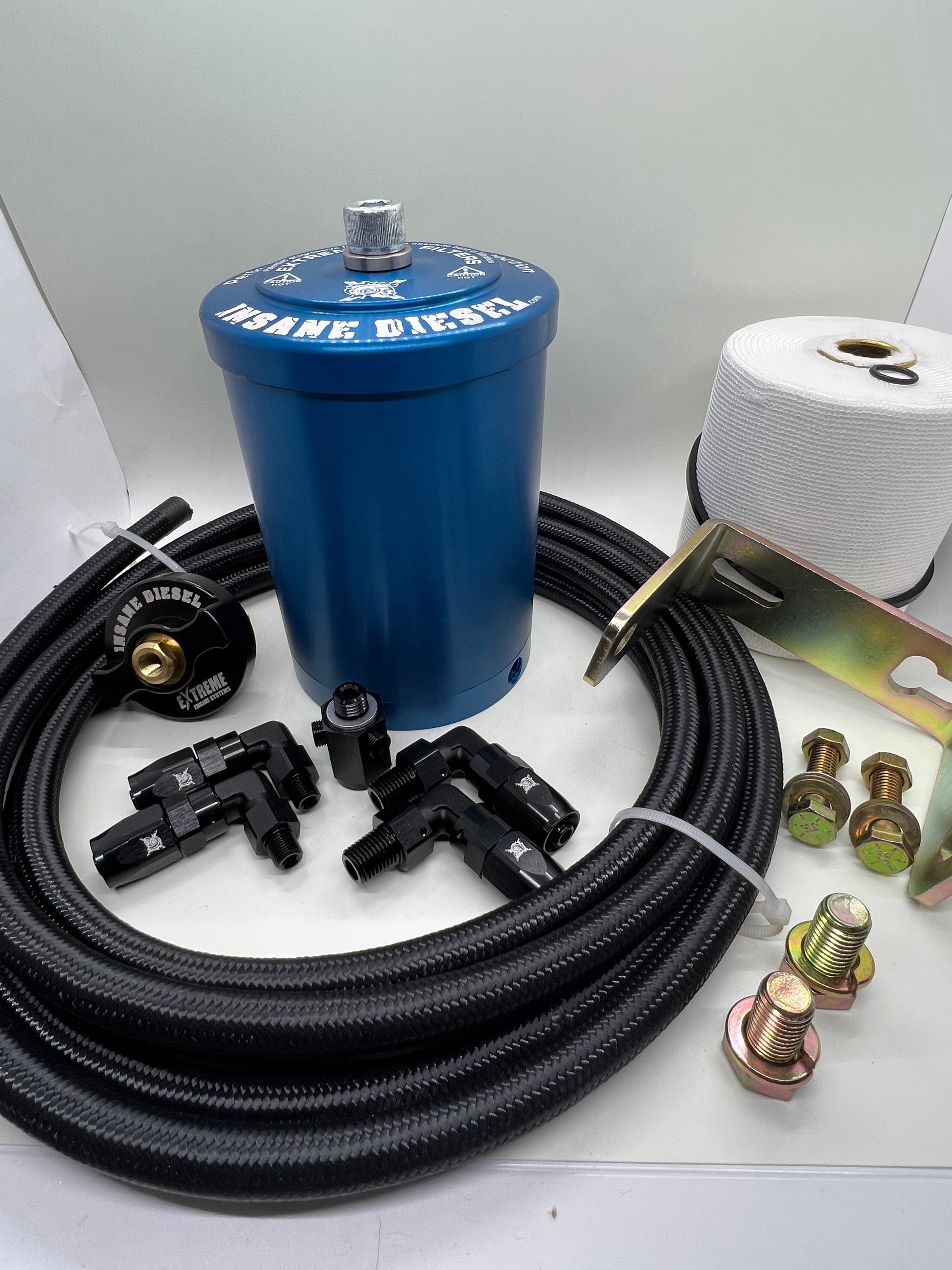

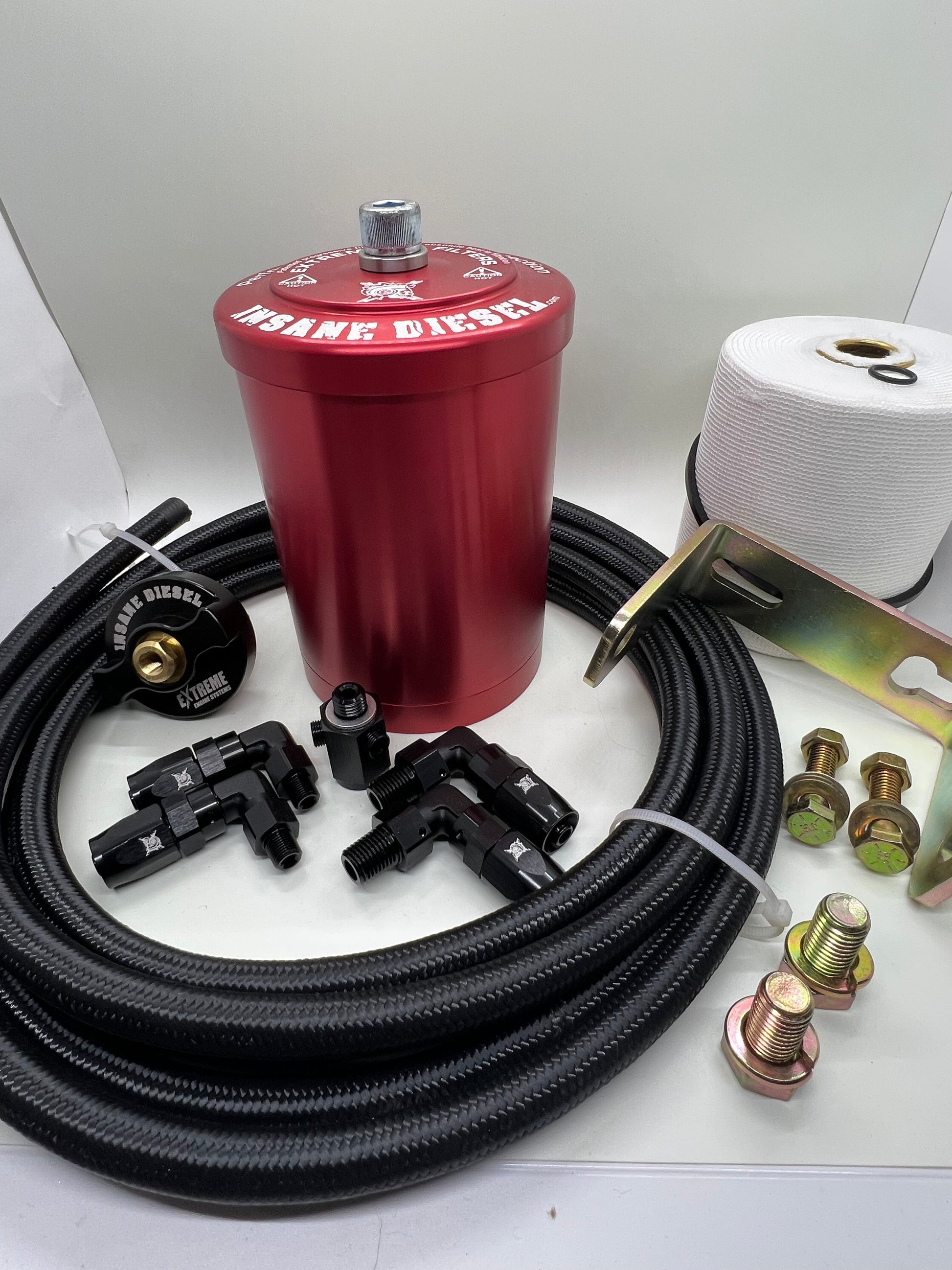

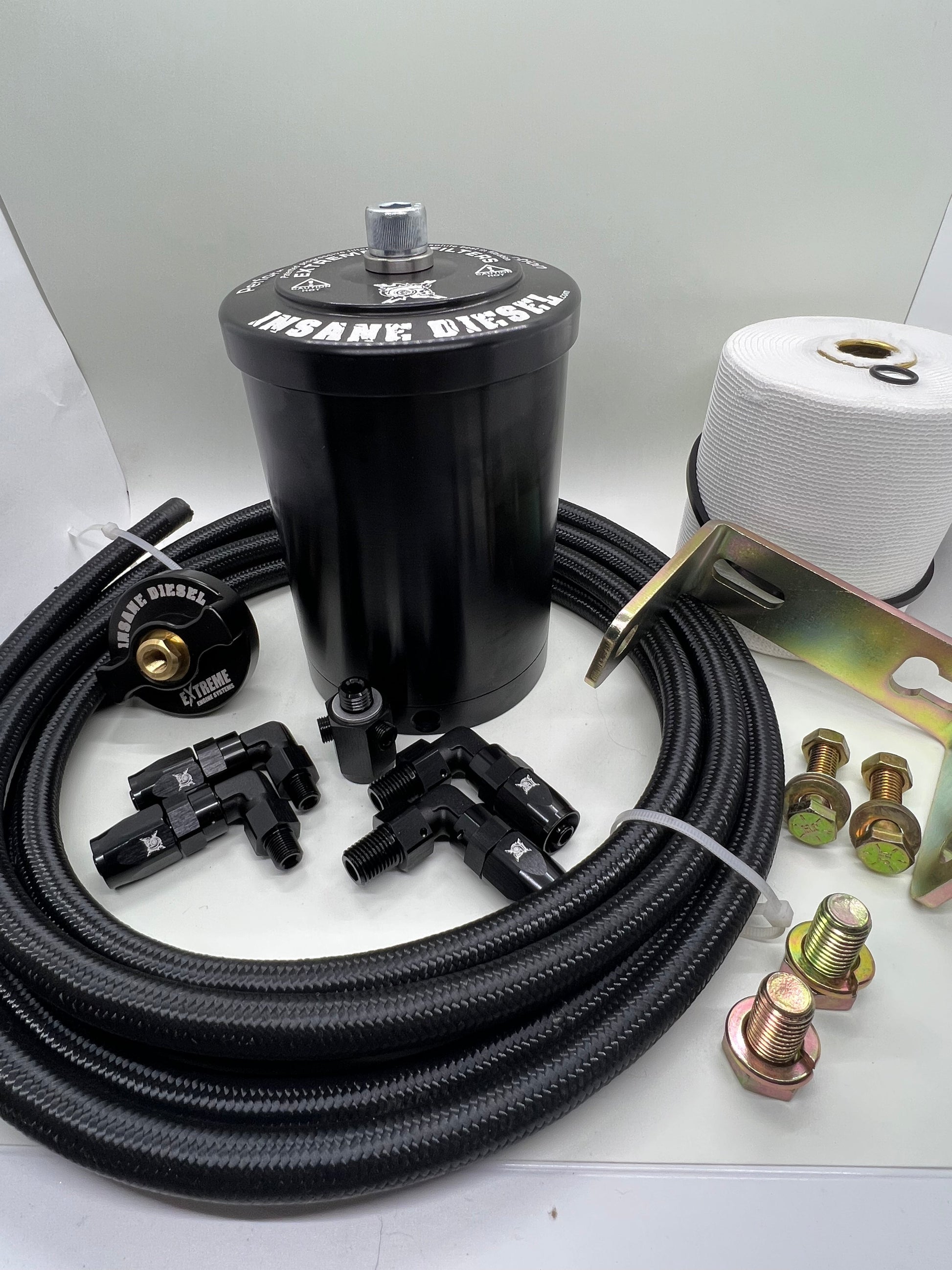

Parts Included In This Kit

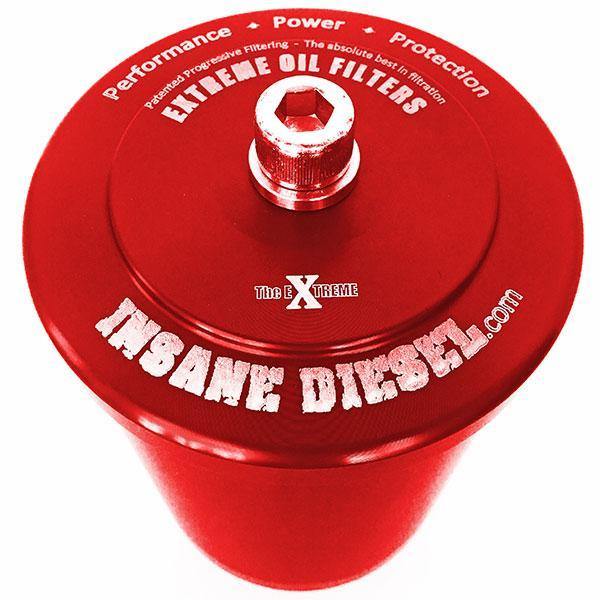

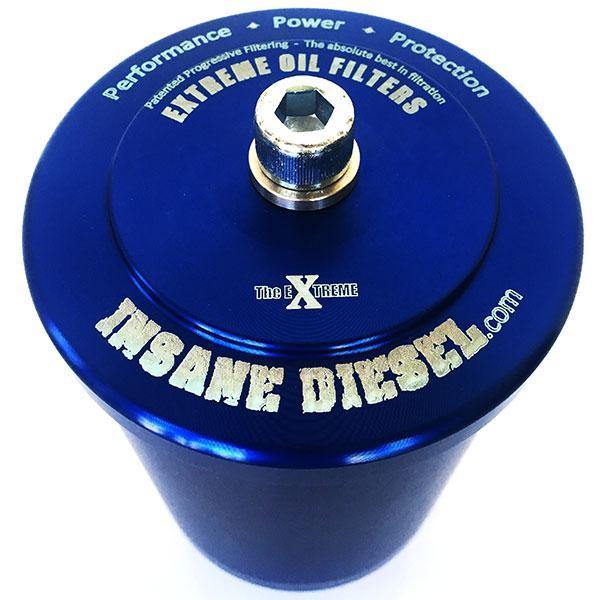

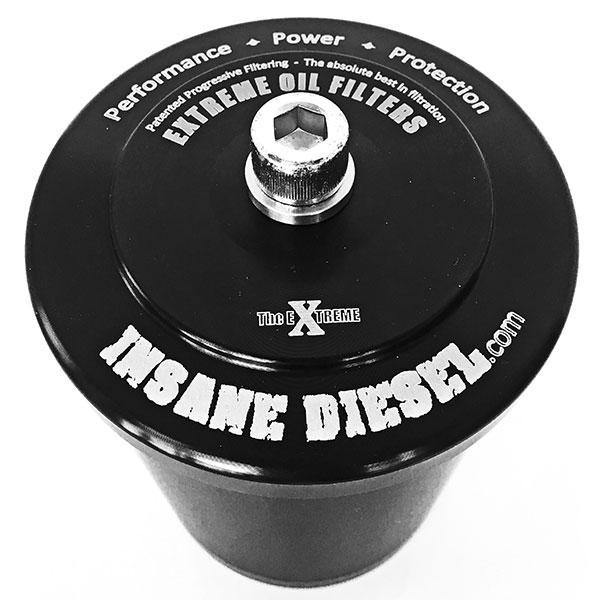

• 1 EXTREME1 bypass oil filter housing (HX1SHBK) (HX1SHBLU) (HX1SHRED)
• 1 EXTREME1 filter element (EX1SE) with o-rings (GX1/2)
• 2 In/Out fittings (AN06-04MS90)
• 10ft of hose you can cut to your preference (LW06BK)

Mounting Options

Standard Frame Mount Option:

• 1 Mounting bracket with hardware (ZBRCKX12)

Under-the-Hood Mount Option: (verified to fit the  Silverado and 1500 gmc only)

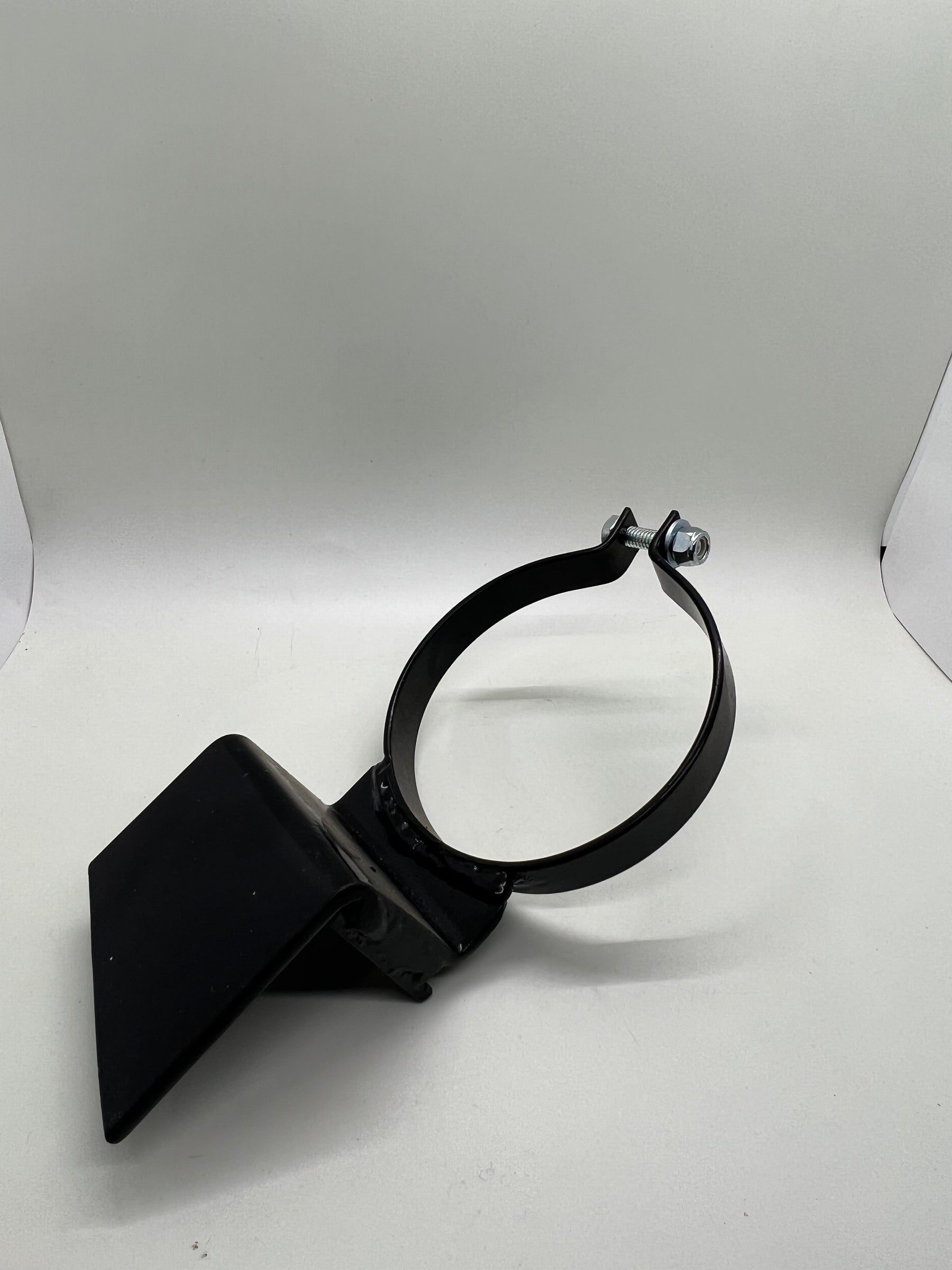

• 1 Under the hood bracket with hardware (UTHD30)

Pressure Port

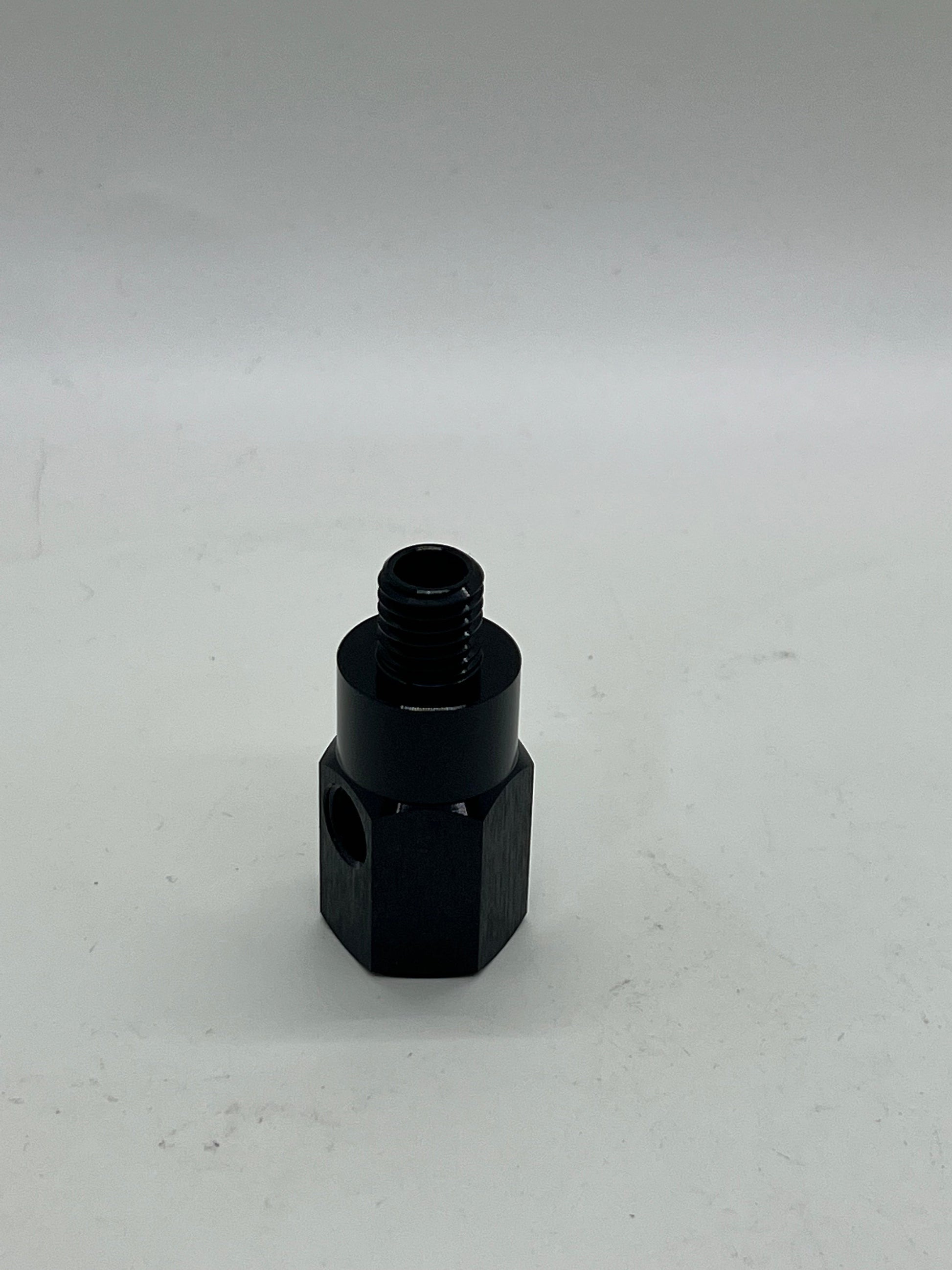

• 1 Tee fitting system (TM1275B) with washer (C12) and fittings (AN06-02MP90 + AN06-06FJ)

Return Port

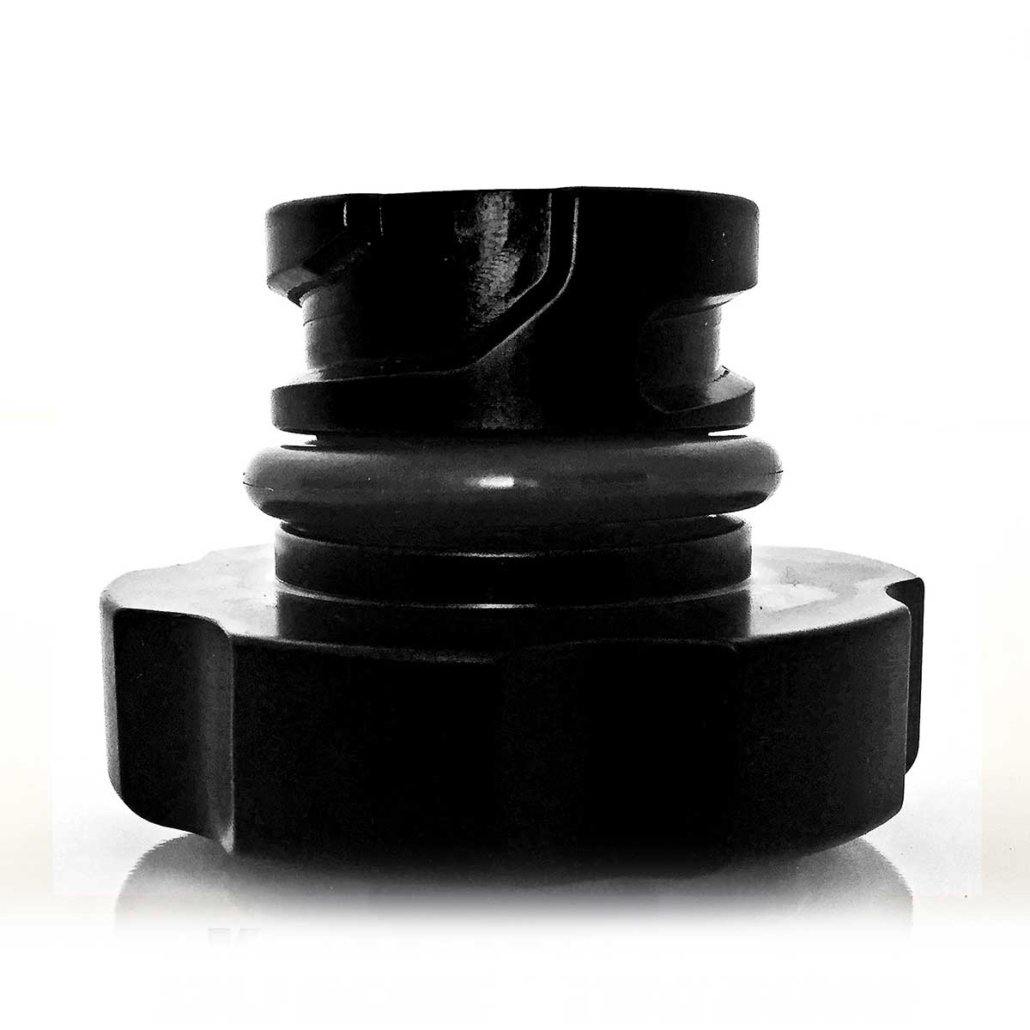

• 1 Oil filler cap (FLLCDUO) with o-ring (ODU) and fitting (AN06-02MS90)

Installation Information

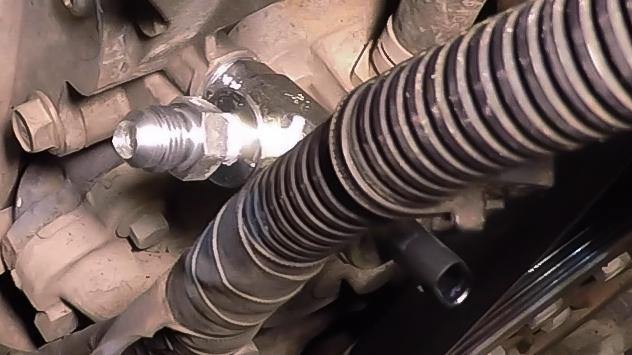

• Location of oil pressure switch seen in image below

• Oil return is simply done by using our oil filler cap with oil return port

• There is no official mounting location for this vehicle yet, use our custom mounting guide for more information on how to mount this filter

• We also recommend viewing all our general installation guides

BENEFITS OF ULTRA-FINE OIL FILTRATION
