Duramax 6.6L Bypass Oil Filtration System "Frame Mount" (2001-2019)

Duramax 6.6L Bypass Oil Filtration System "Frame Mount" (2001 to 2019)

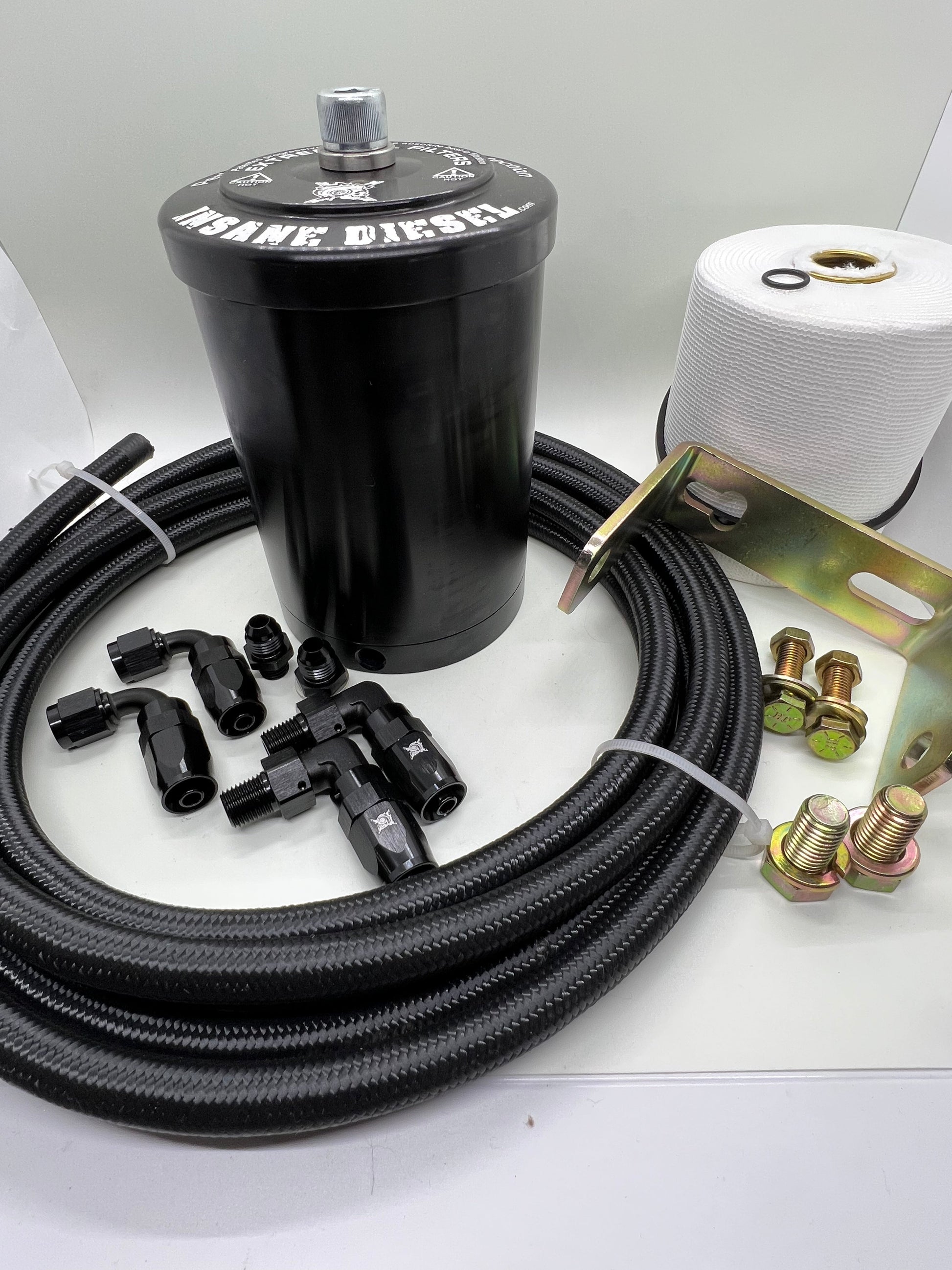

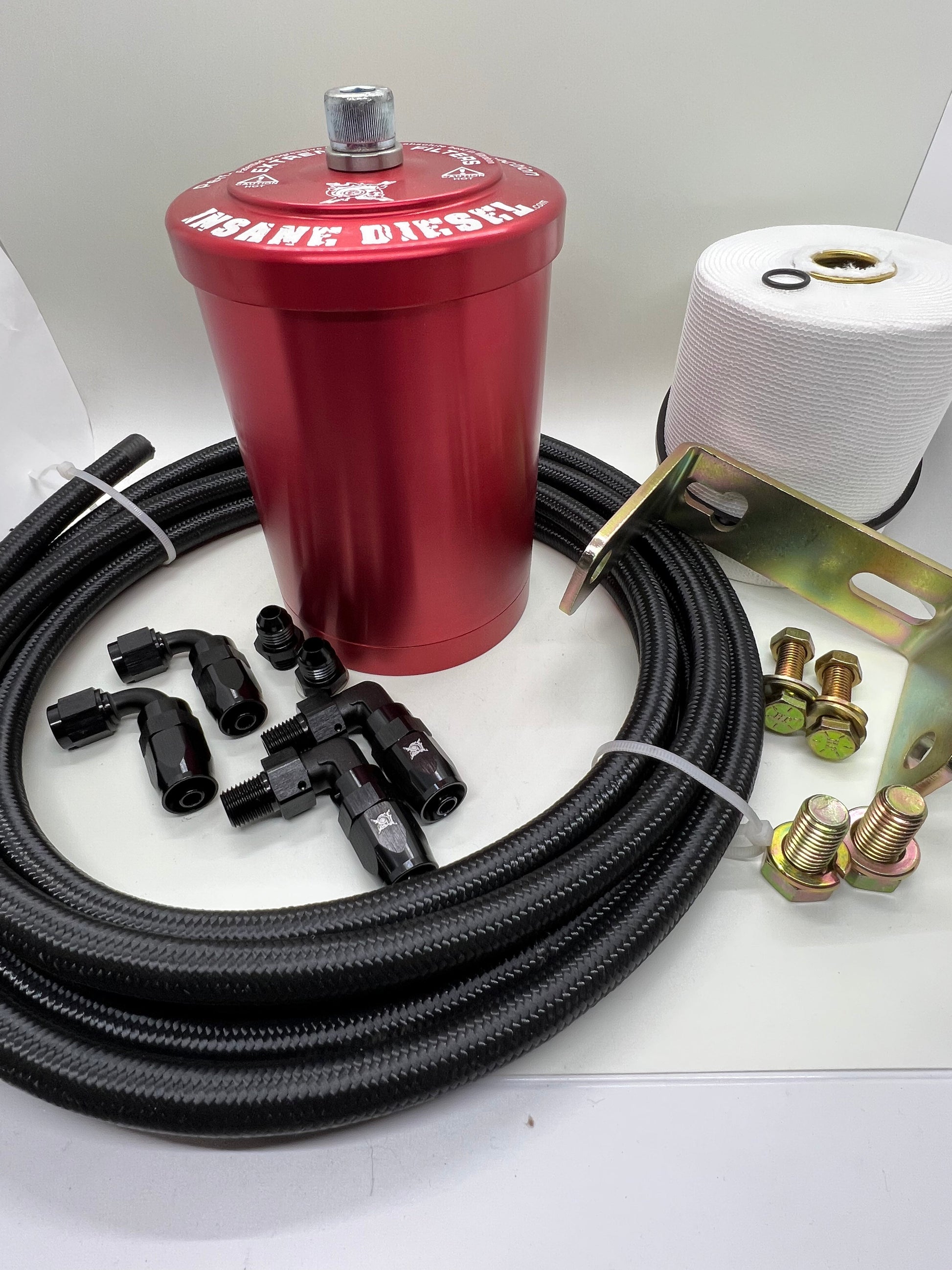

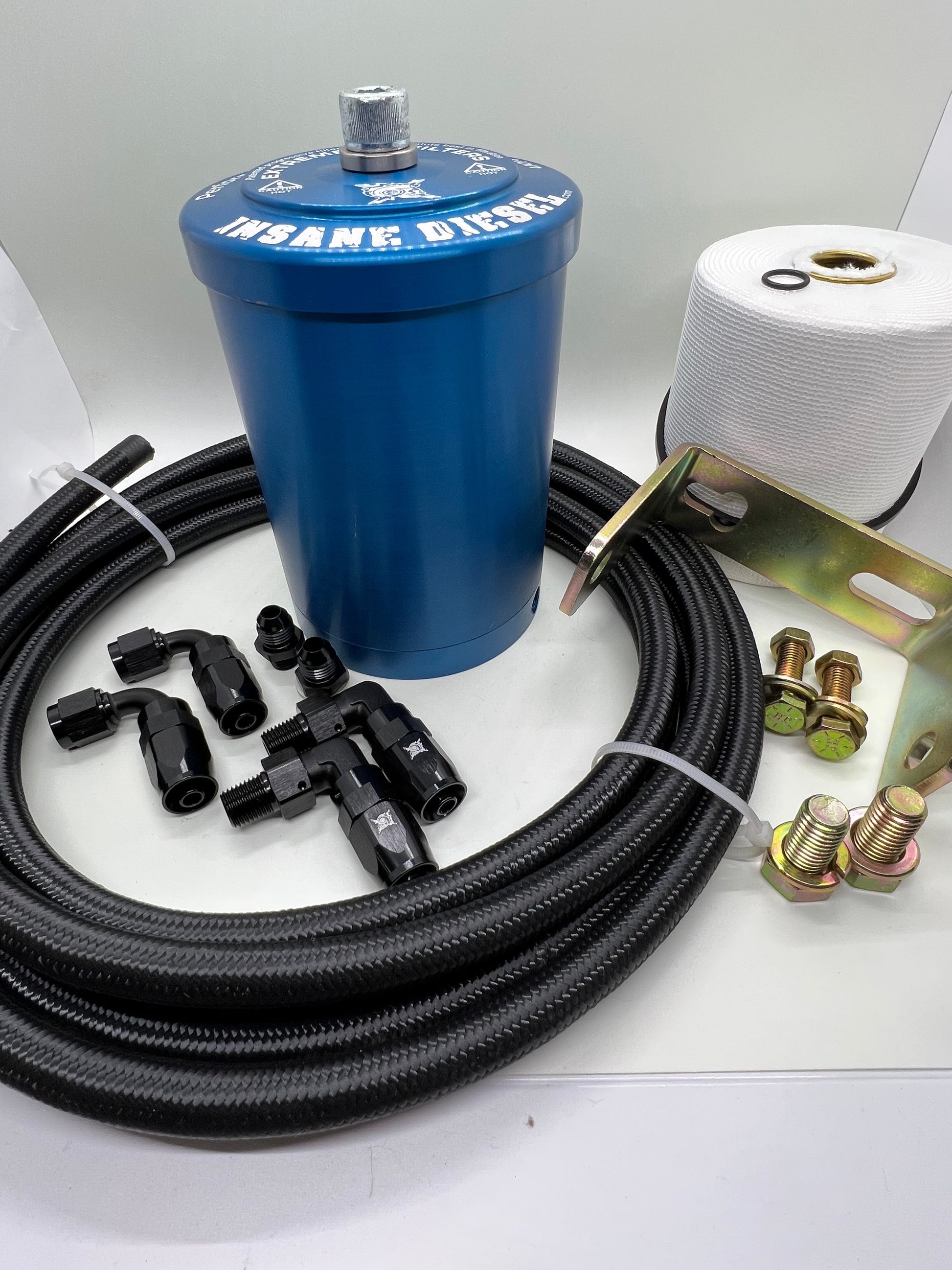

Parts Included In This Kit

• 1 EXTREME 2 bypass oil filter housing (HX2SHBK) (HX2SHBLU) (HX2SHRED)
• 1 EXTREME 2 filter element (EX2ME) with o-rings (GX1/2)
• 2 In/Out fittings (AN06-04MS90)
• 7ft and 7ft hose (LW06BK) Notice: Hose ships uncut as a single 14 ft continuous length to allow flexible mounting and routing.

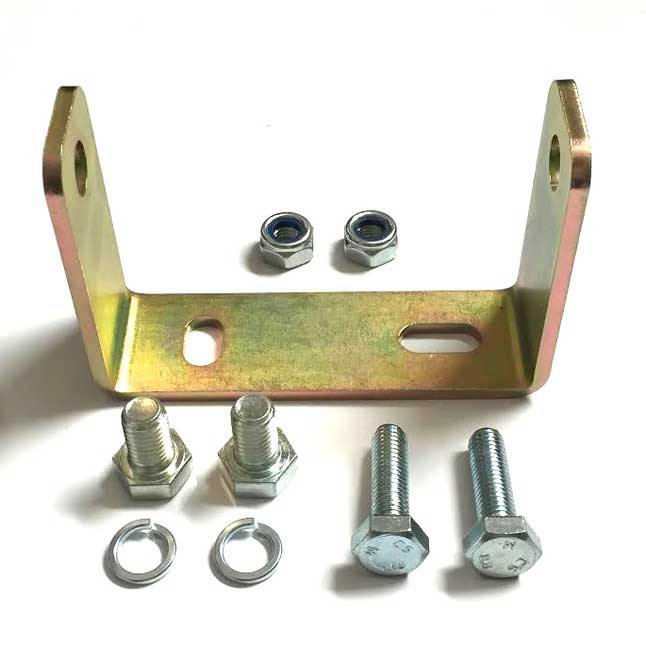

• 1 Mounting bracket with hardware (ZBrckX12)

Pressure Port Options:

Duramax engines may be equipped with either the straight-thread plug or a tapered-thread plug. Scroll down to see the description between both and quickly identify which style is installed on your engine.

• Straight Thread:  (6MBPRR) + o-ring (O16) +  fitting (AN06-02MP90 + AN06-06FJ)
• Tapered Thread.  (6MBPTRR) + fitting (AN06-02MP90 + AN06-06FJ)

Oil Drain Plug Return:

• 1 Oil filler cap (FLLCDUO) with o-ring (ODU) and fitting (AN06-02MS90)

How to Identify Your Pressure Port Thread:

The image above has circled the pressure port plug to check:

Loosen or Remove the plug and use description below to identify your pressure port option:

• If the plug has a flat shoulder/ledge that stops against the engine and may include a washer, crush washer, or o-ring then your pressure port option is "straight thread".

• If the plug does not have have a washer, crush washer, or o-ring then it is most likely a "tapered thread".

Important note about removing the oil pressure plug:

Some customers find it easy to remove this plug and others find it difficult. This is why we highly recommend removing the plug to verify the thread before ordering a kit. Here are some tips submitted by our customers to help with removing this plug:

• Some suggest cutting an allen wrench to shorten the length to allow for additional room to use a breaker bar or other leverage device.

• Some recommend slightly lifting vehicle to drop suspension, this gives a little more room to work around the area.

Installation Guide:

The Following Video is for the Under-the-Hood version but still a great reference for the installation process.

The following installation guides are for older legacy kits. The fittings are different but the concept is the same, please use this as reference only.

Duramax 6.6 Installation Guide (FRAME MOUNT PDF)

Duramax 6.6 Under-the-Hood Kit (VIDEO)

BENEFITS OF ULTRA-FINE OIL FILTRATION
