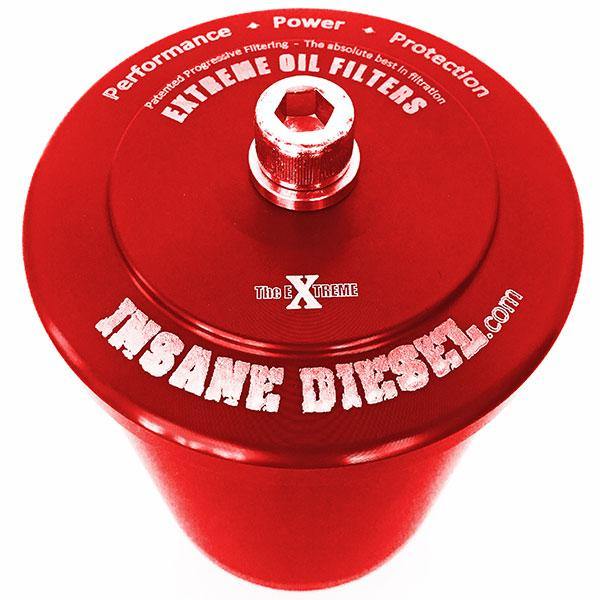

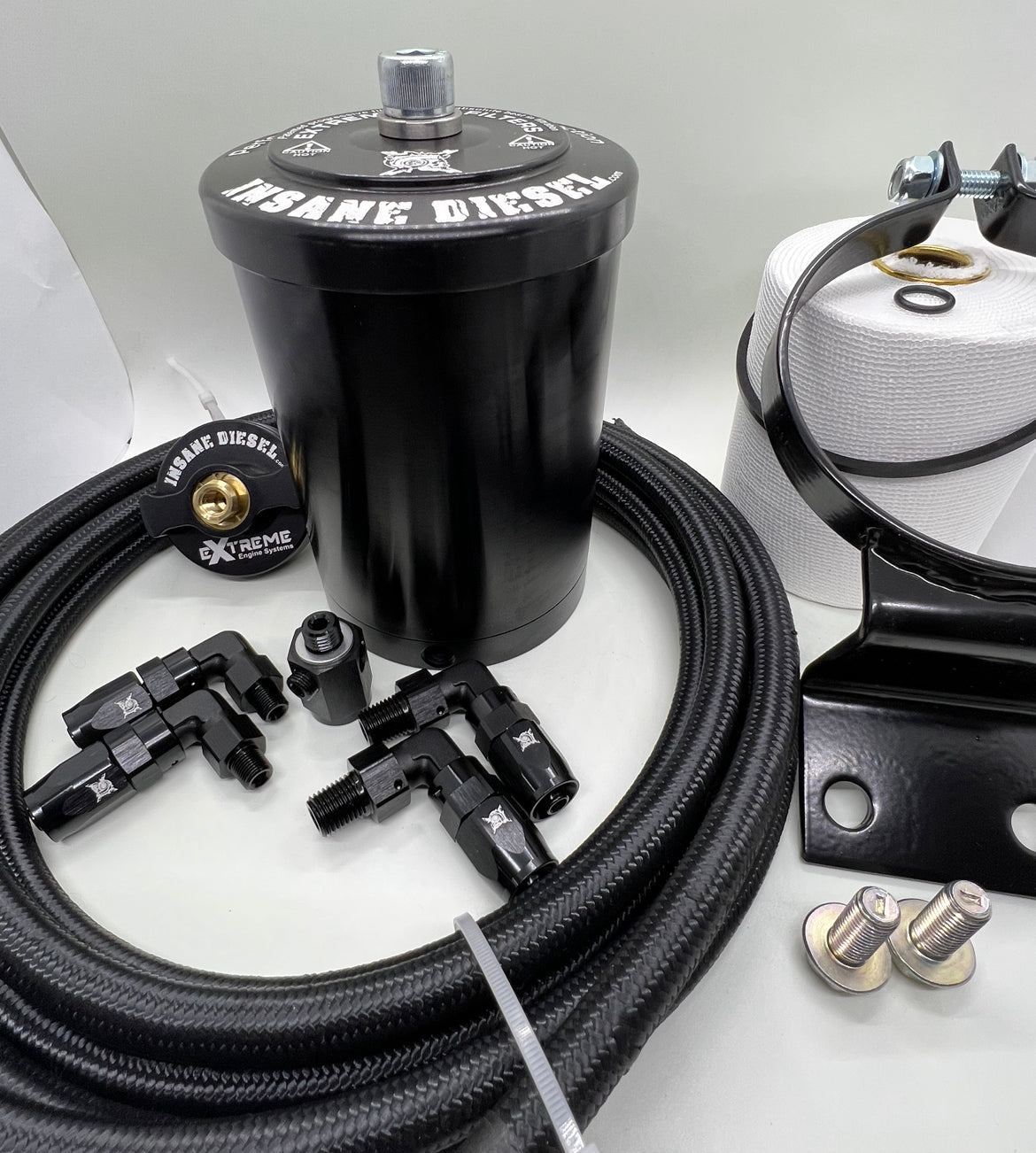

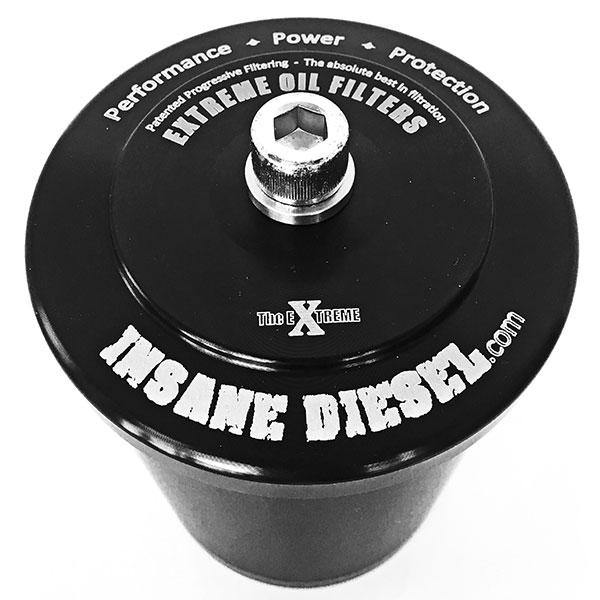

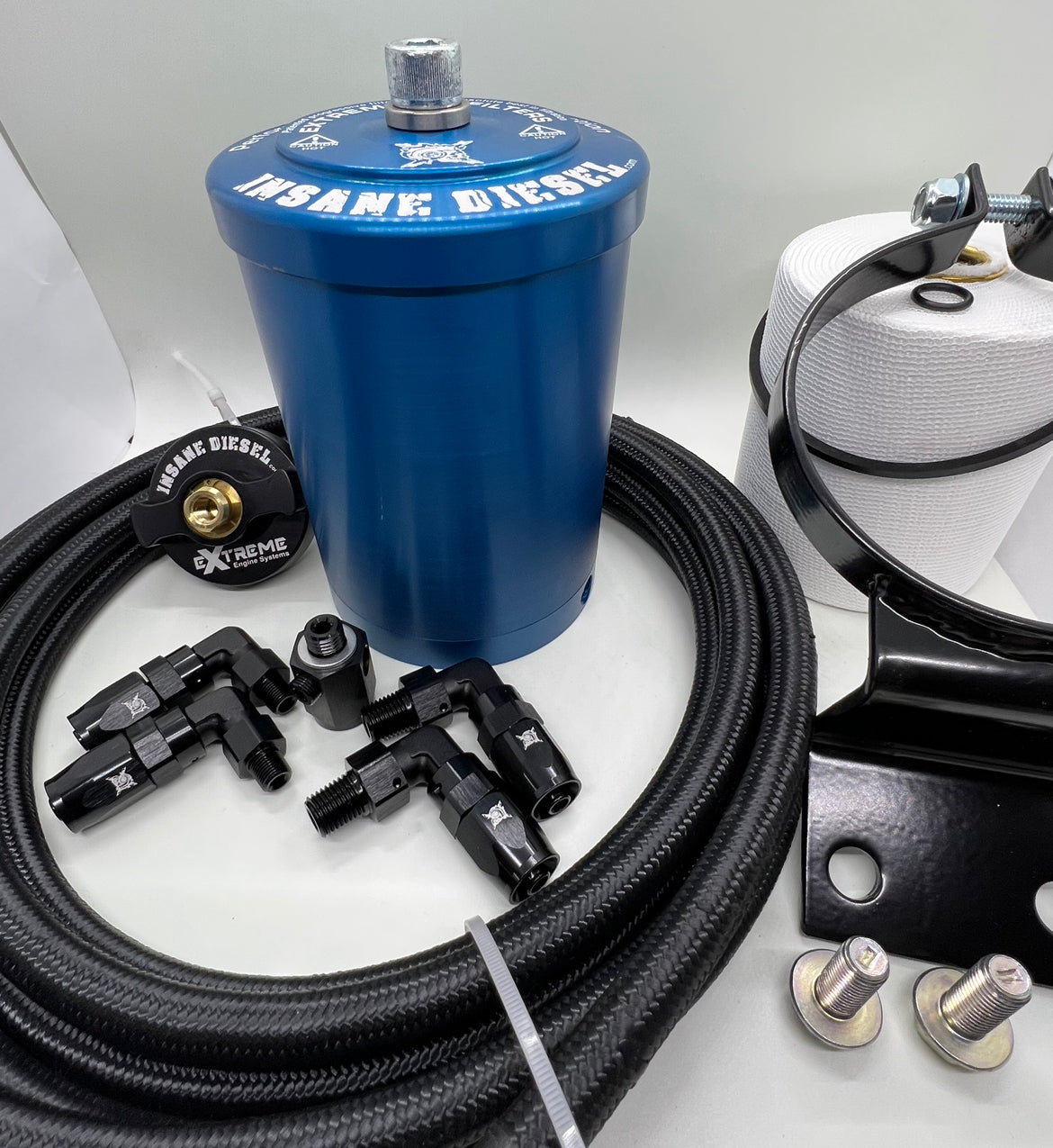

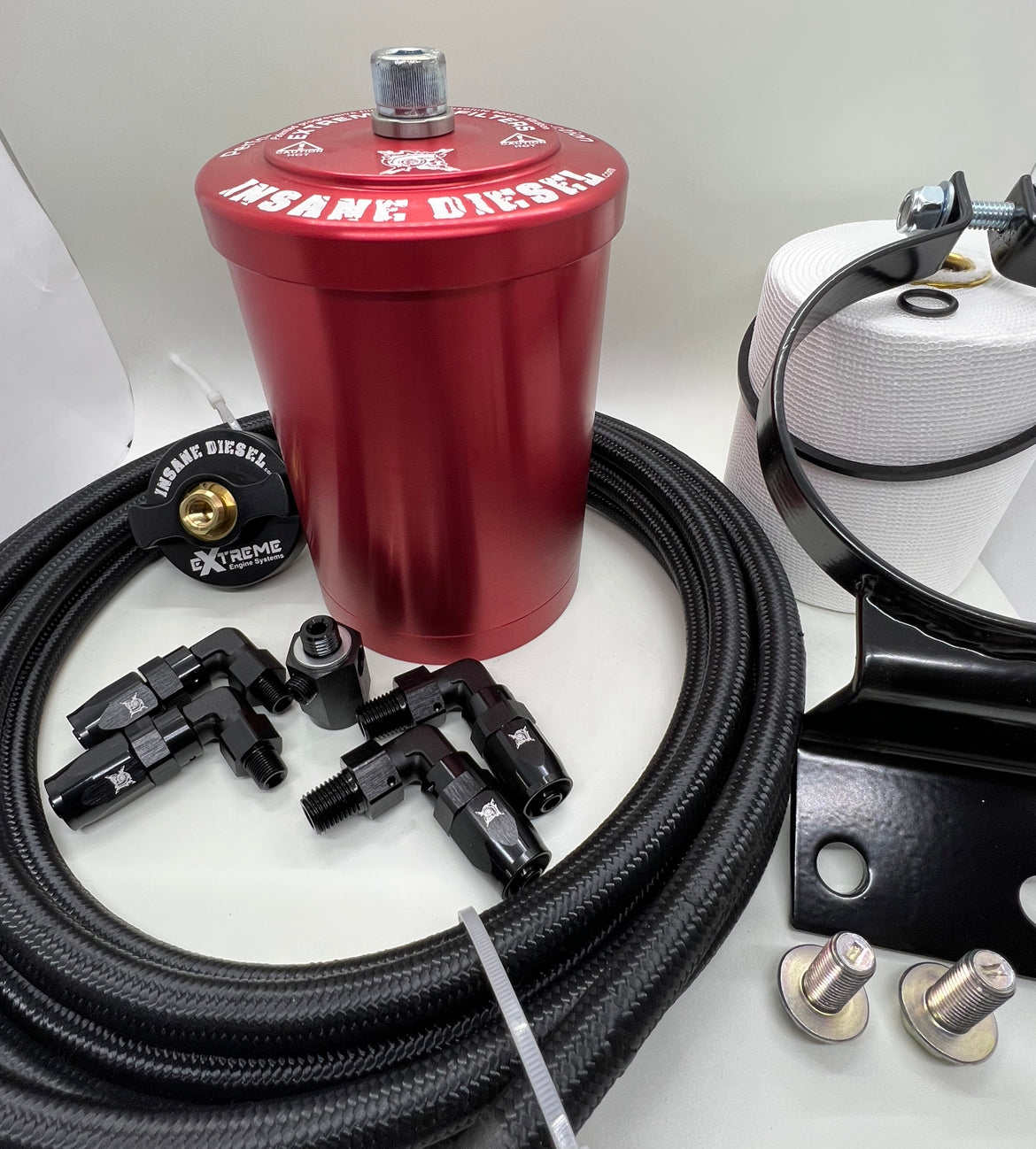

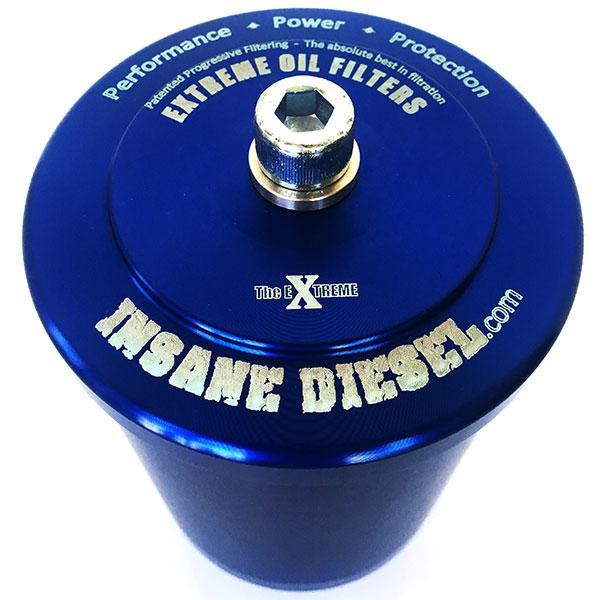

1 EXTREME 2 filter element (EX2ME) with o-rings (GX1/2)
2 In/Out fittings (AN06-04MS90)
Pressure Port
1 Tee fitting system (TM1010B) with washer (D10) and fittings (AN06-02MP90 + AN06-06FJ)
Return Port Option – 2022–2025 New Body style
1 Oil drain plug adapter (AN06-14MMx1.5) with o-ring (O14) and fitting (AN06-06FJ)
10ft of hose to be cut to your preference (LW06BK)

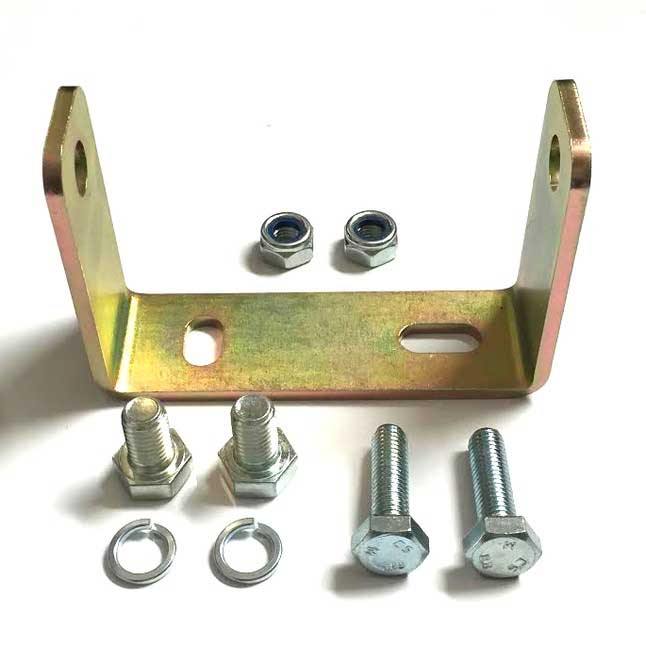

1 Mounting bracket with hardware (ZBrckX12)
Return Port Option – 2005–2021 Classic
Notice: call us to confirm whether you have a threaded or internal twistlock filler cap before ordering 2005-2021 classic variant.

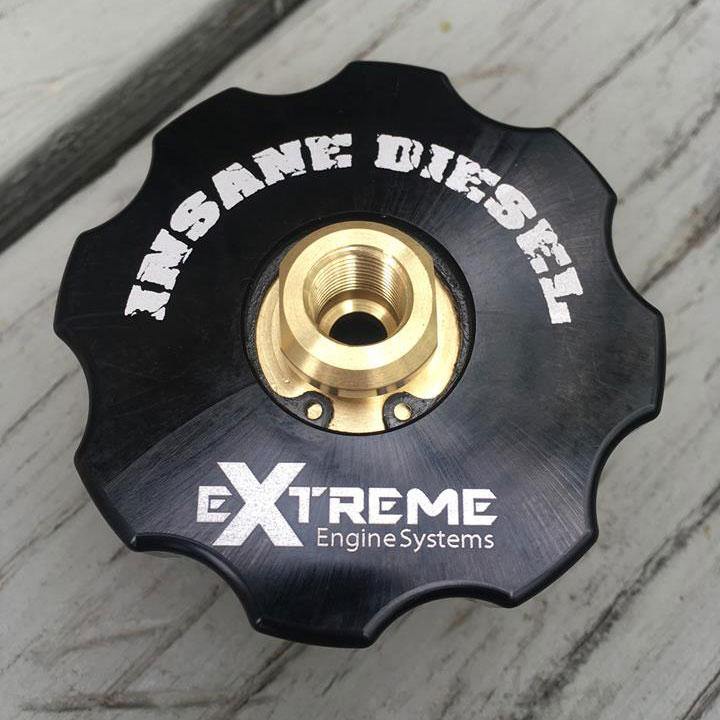

1 Oil filler cap (FLLCCO) with o-ring (OCC) and fitting (AN06-02MS90)
10ft of hose to be cut to your preference (LW06BK)
1 Mounting bracket with hardware (ZBrckX12)
---------------
The 2005 to 2021 kit includes: • Same as above but no oil fill cap return system. • You’ll receive an M14 × 1.50 oil‑drain‑plug adapter, so all return oil flows back through your existing drain pan.
Installation:
• We recommend reviewing all our general installation guides to gain insight on how to prepare to install our filter: https://insanediesel.com/pages/installation-guides
• Installation/assembly required by professional mechanic
Important: Aluminum straight thread fittings are made for no more than 60 inch pounds of torque.
