Dodge 6.7L Cummins Bypass Oil Filter “Under The Hood” Kit (2014 to 2024)

Cummins 6.7L Bypass Oil Filter “Under The Hood” Kit (2014 to 2024)

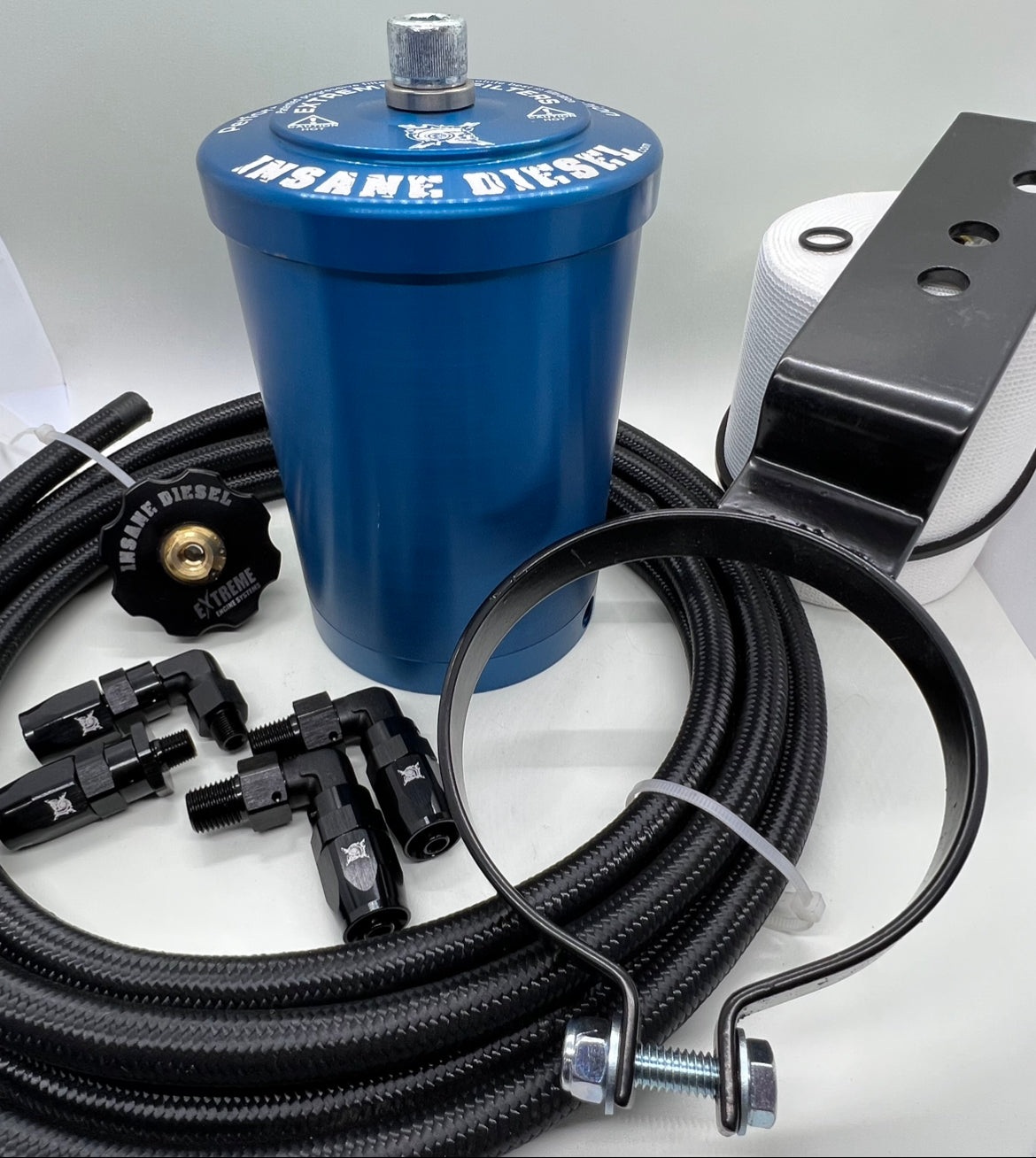

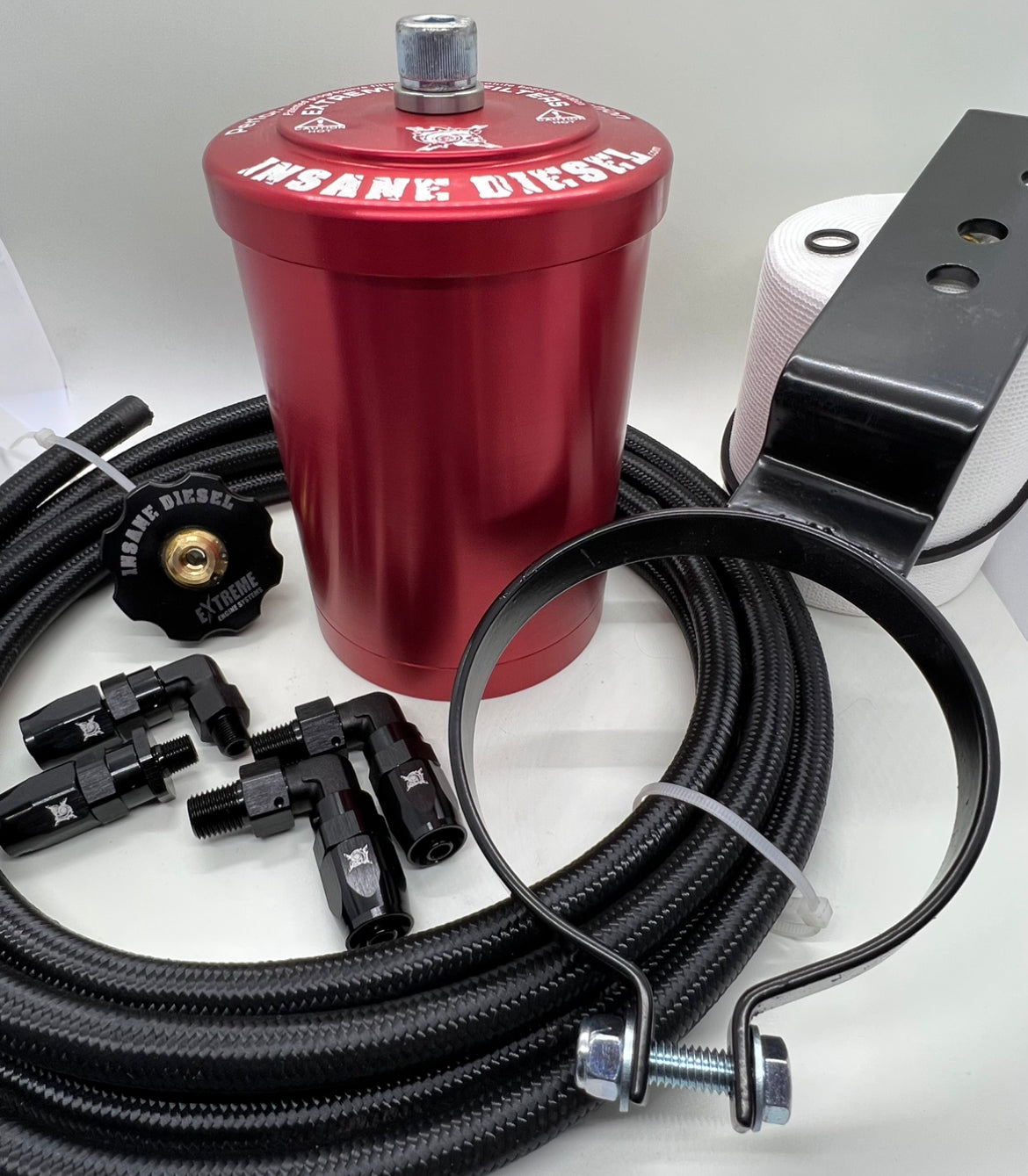

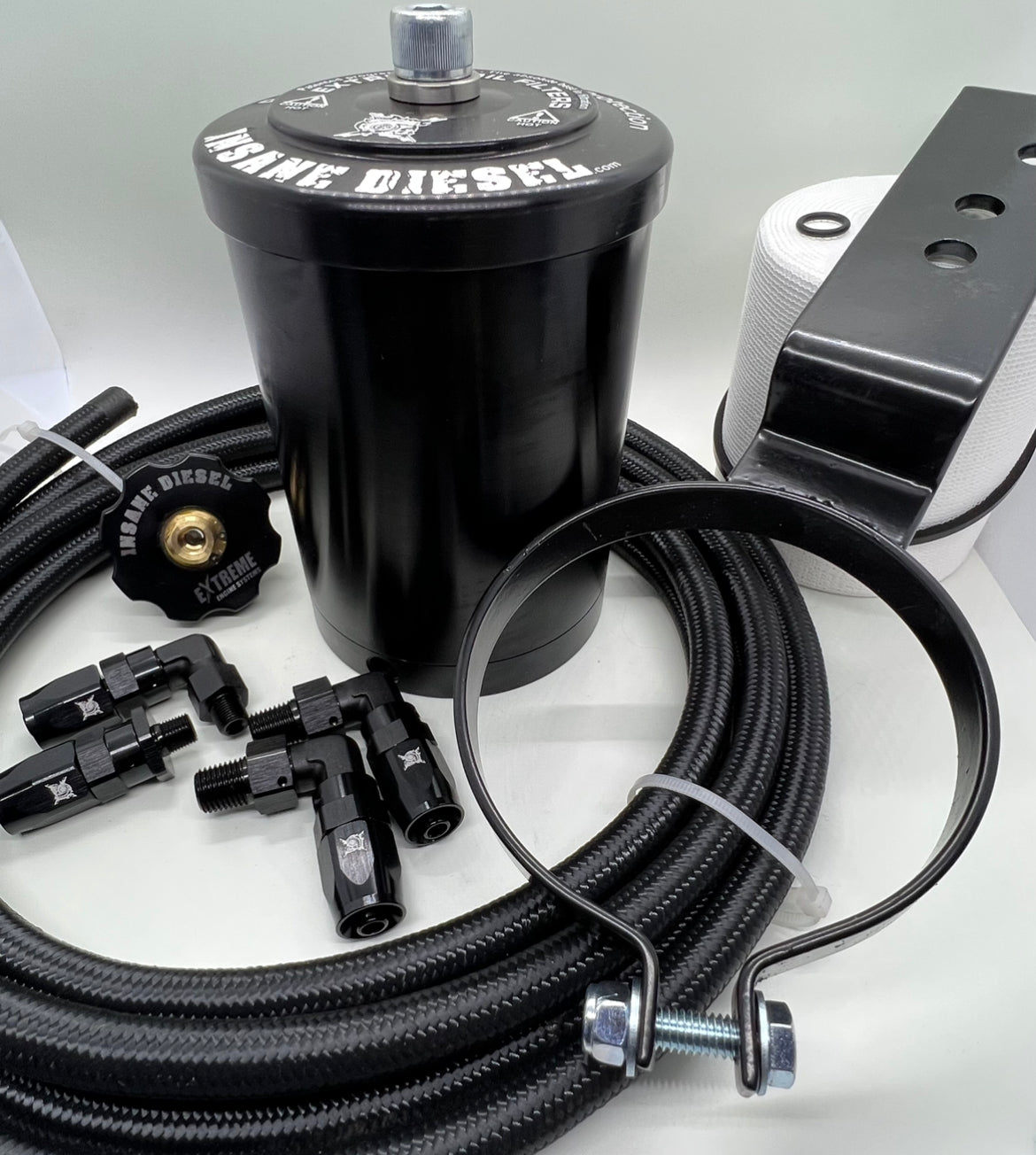

Parts Included In This Kit

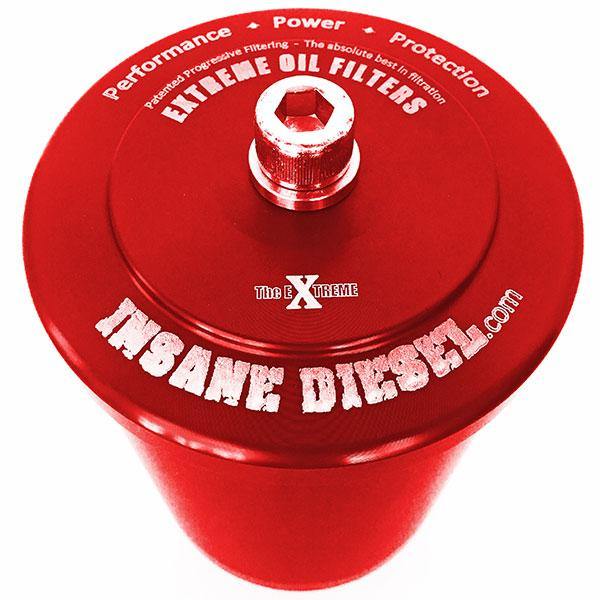

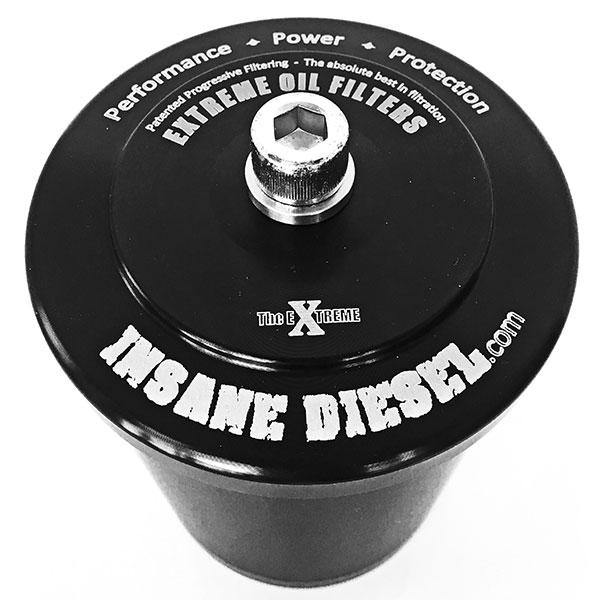

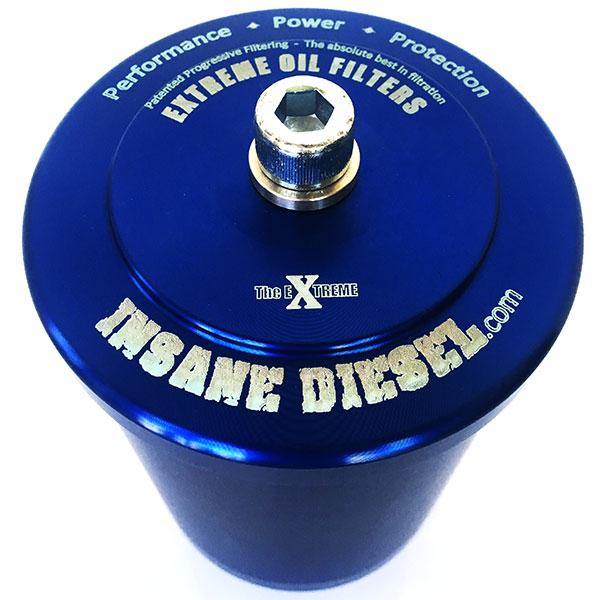

• 1 EXTREME 2 bypass oil filter housing (HX2SHBK) (HX2SHBLU) (HX2SHRED)
• 1 EXTREME 2 filter element (EX2ME) with o-rings (GX1/2)
• 2 In/Out fittings (AN06-04MS90)
• 2.7' and 4.5' hose (LW06BK) Notice: Hose ships uncut as a single 7.2' continuous length to allow flexible mounting and routing.
• 1 Under-the-Hood bracket with bolts (UTHLB)

Pressure Port

• 1 Pressure port fitting (AN06-02MS45)

Return Port

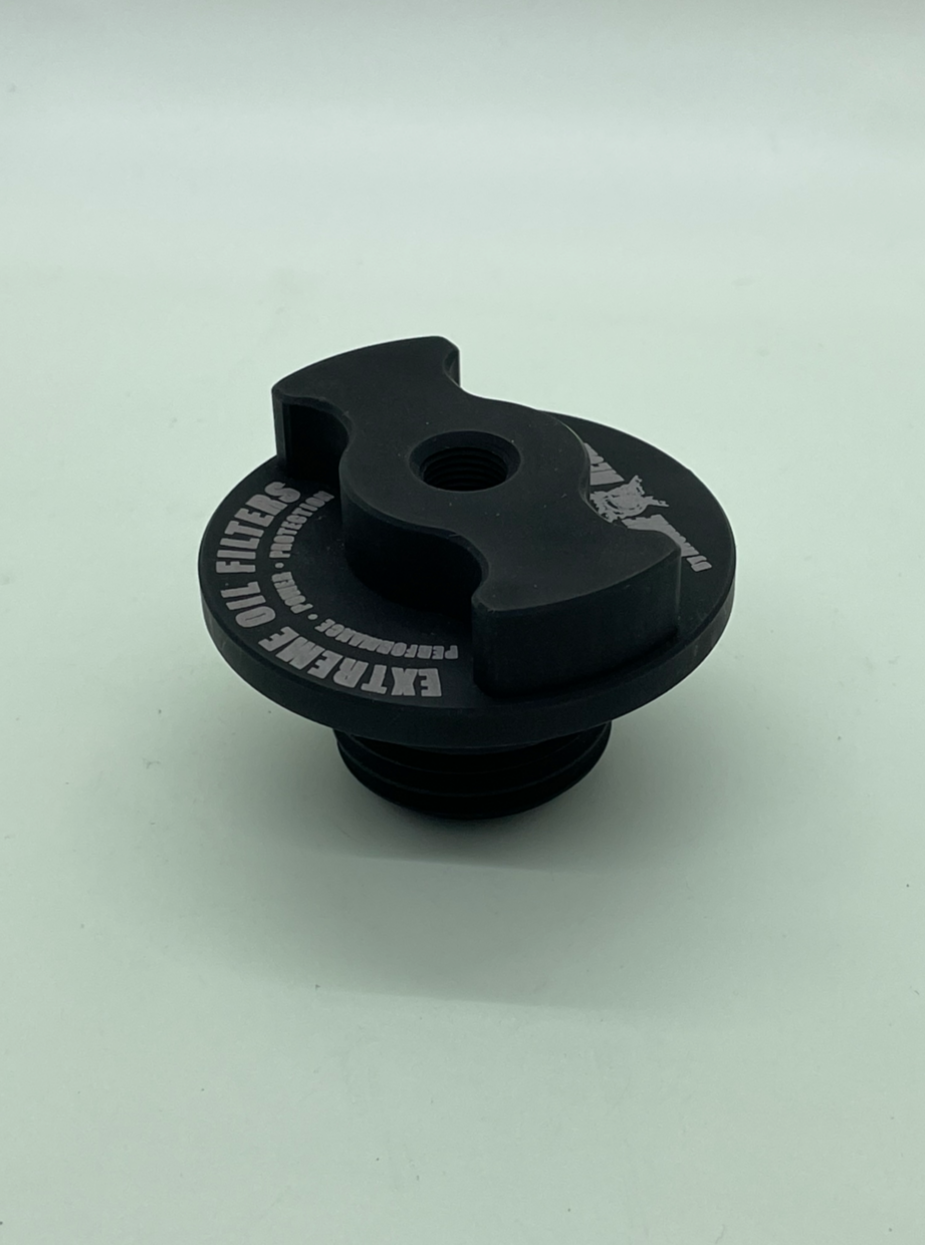

• 1 Oil filler cap (FLLCCO) with o-ring (OCC) and fitting (AN06-02MS90)

Installation notes:

Important: Aluminum straight thread fittings are made for no more than 60 inch pounds of torque.

• Under-the-hood bracket not compatible with "Y" shaped radiator hose or Dual Alternators. Order the frame mount version instead if you have the "y" shaped radiator hose.

Installation guides.

This is the latest installation video with updated fittings.

NEW installation video (latest installation video)

This installation video is for an older version of our kit with different fittings but the concept is the same.

Installation Video (old installation video)

------------------------

3 tips for getting pressure port fitting installed with hard-line in the way.

Watch pressure port installation video.

Order optional fitting #E452MF ($10) mentioned in video here.

------------------------
