Dodge 6.7L Cummins Bypass Oil Filter “Under The Hood” Kit (2007 to 2013)

Cummins 6.7L Bypass Oil Filter “Under The Hood” Kit (2007 to 2013)

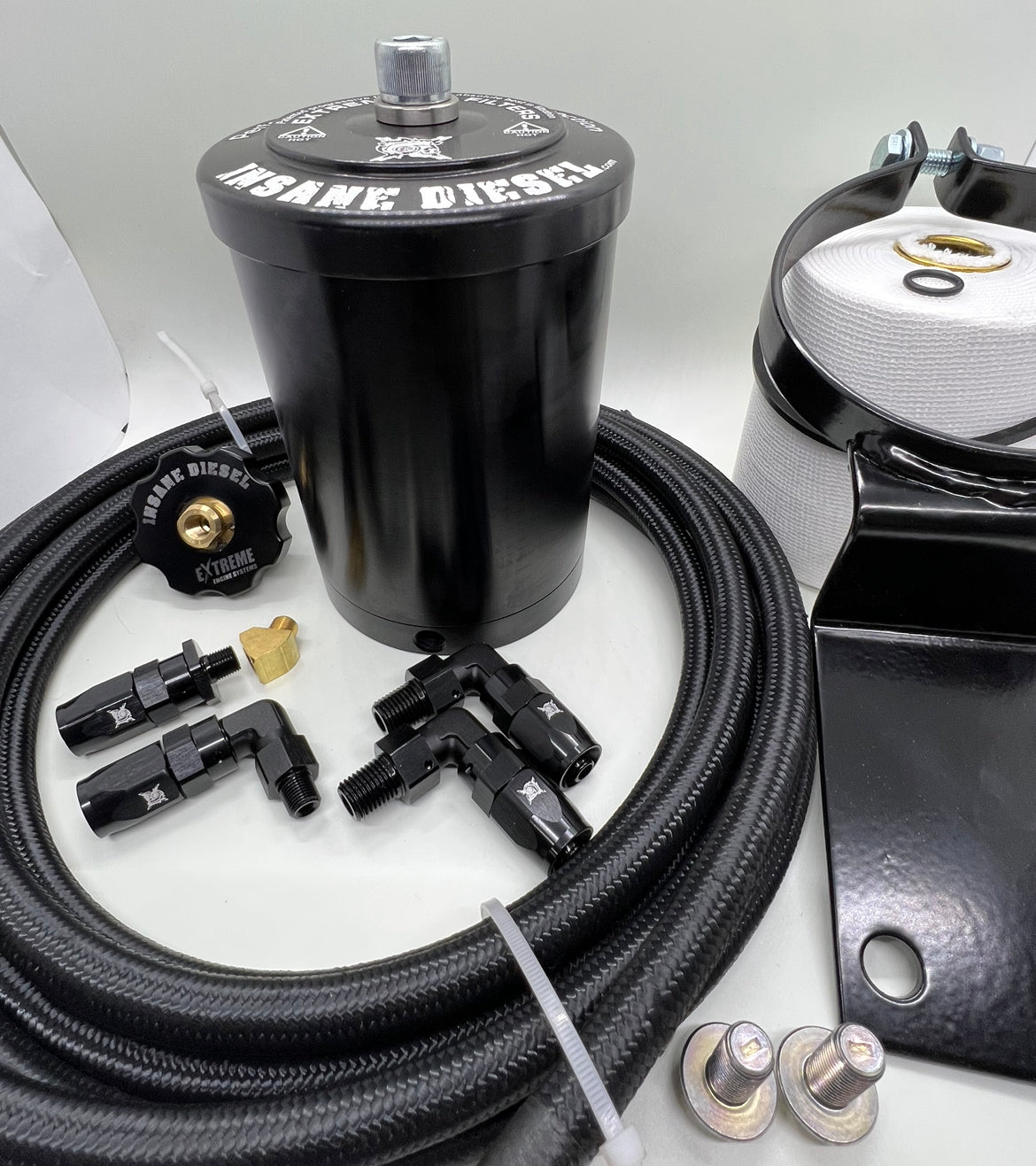

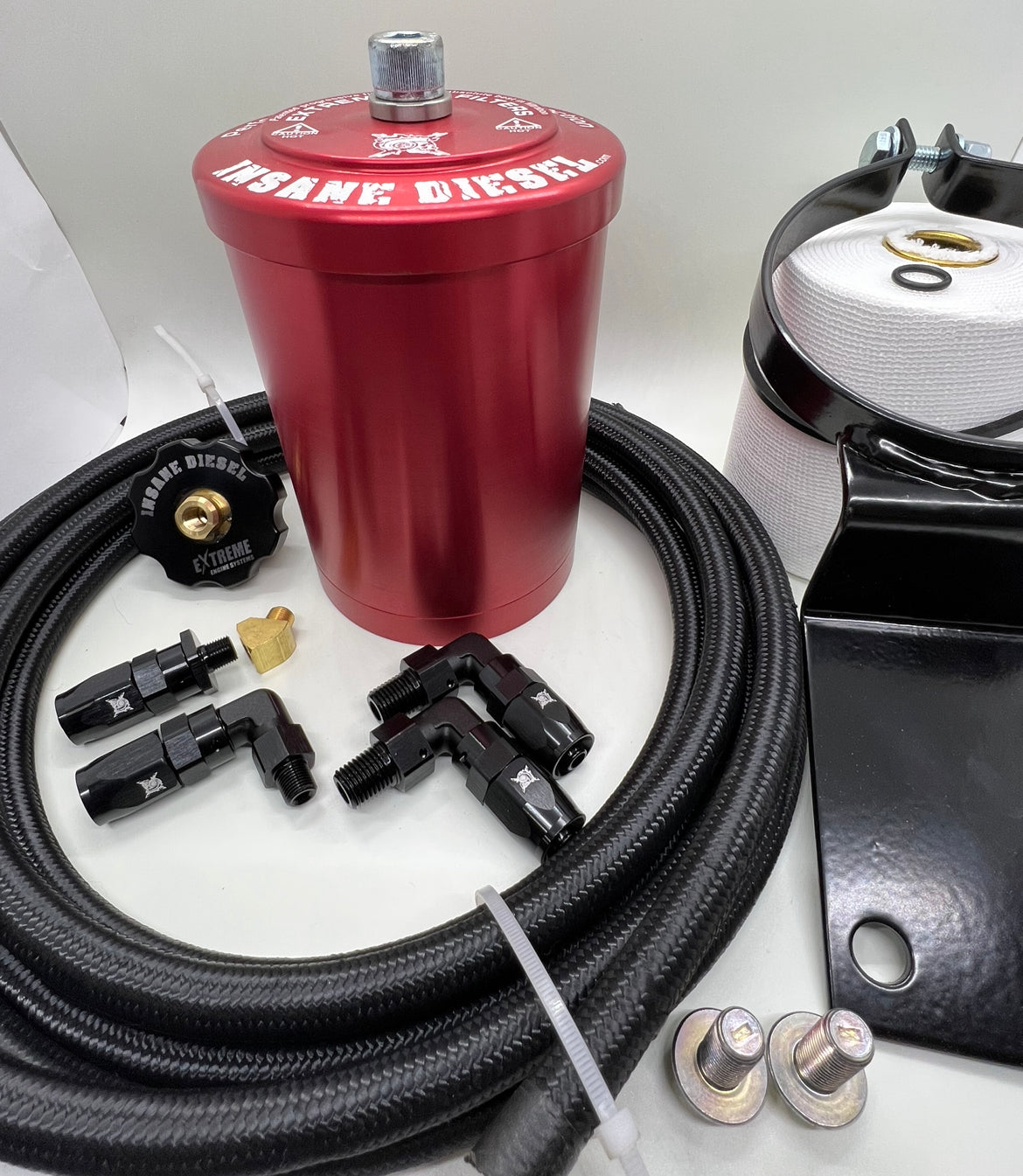

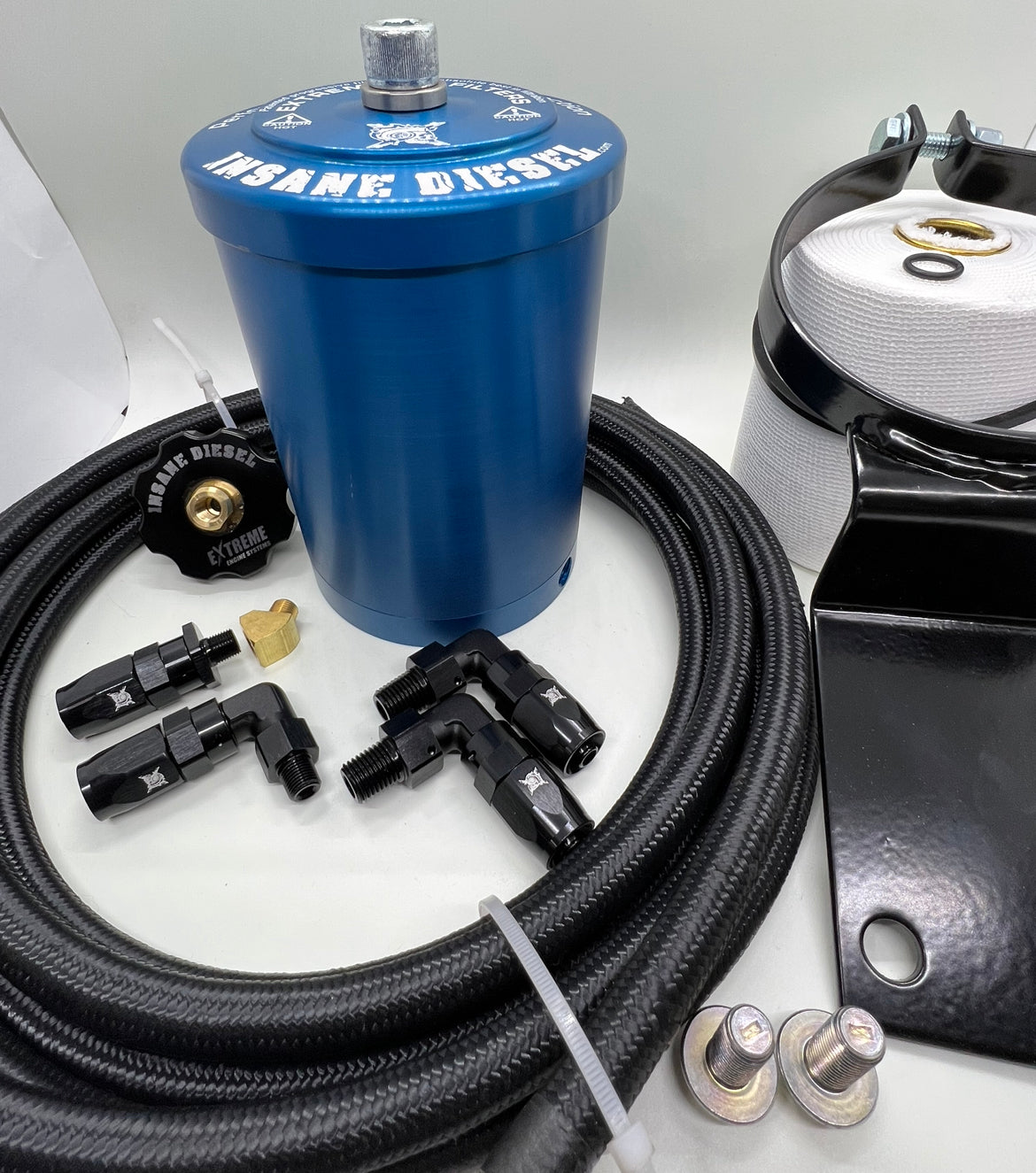

Parts Included In This Kit

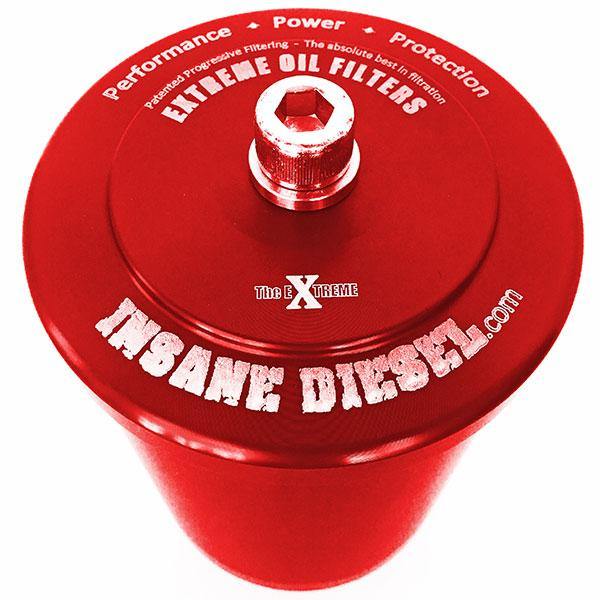

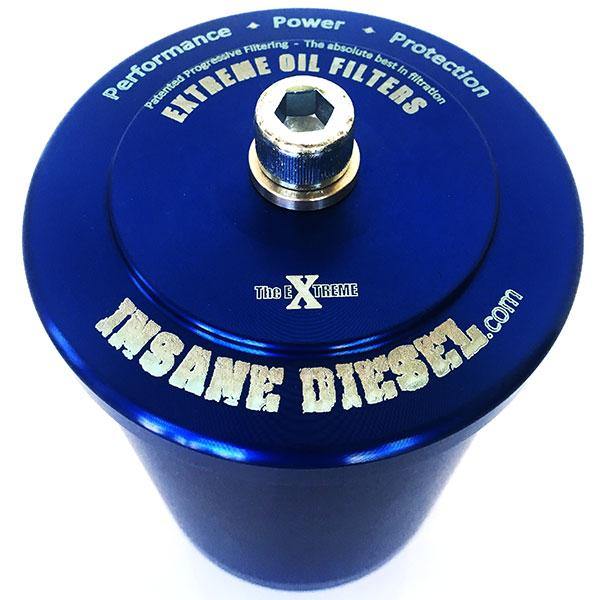

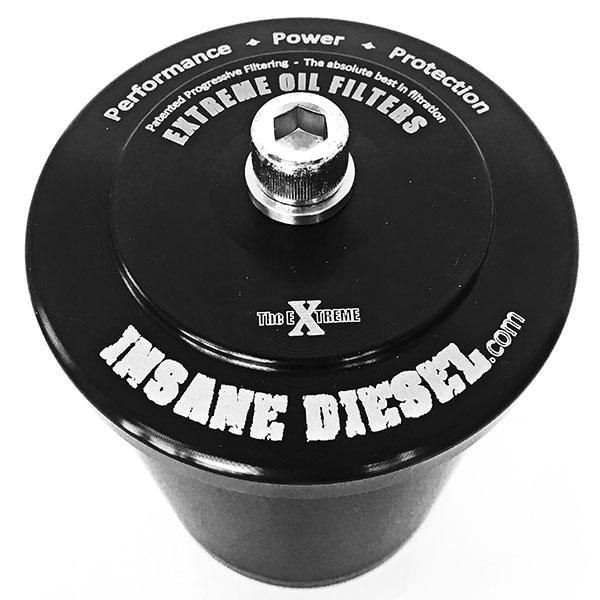

• 1 EXTREME 2 bypass oil filter housing (HX2SHBK) (HX2SHBLU) (HX2SHRED)
• 1 EXTREME 2 filter element (EX2ME) with orings (GX1/2)
• 2 In/Out fittings (AN06-04MS90)
• 2.7' and 4.5' hose (LW06BK) Notice: Hose ships uncut as a single 7ft continuous length to allow flexible mounting and routing.

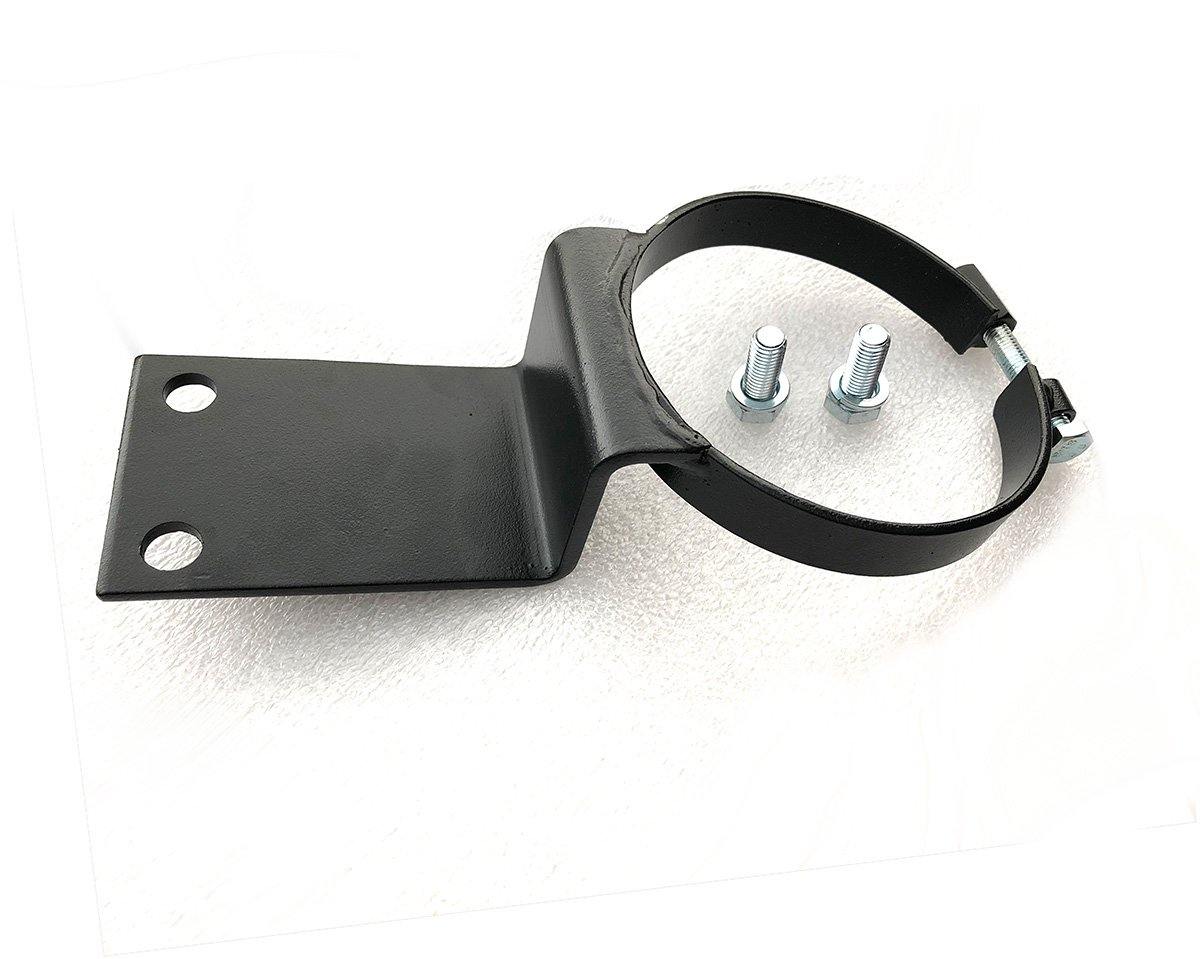

• 1 Under-the-Hood bracket with bolts (UTHU)

Pressure Port

• 1 Pressure port fitting (AN06-02MS45)

Return Port

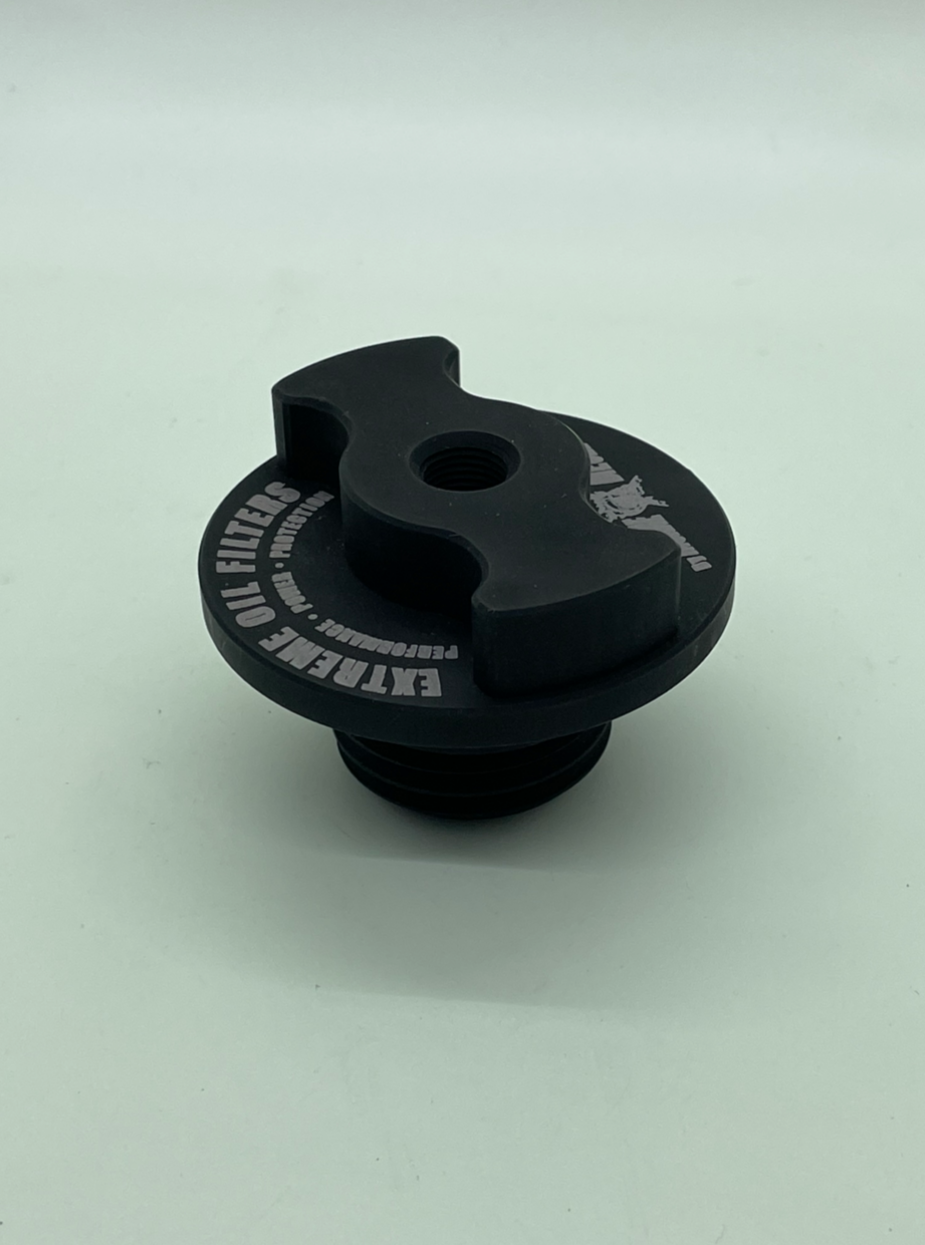

• 1 Oil filler cap (FLLCCO) with oring (OCC) and fitting (AN06-02MS90)

Installation Notes:

Important:  Under the hood bracket not compatible with Y shaped dual alternators.  If you have dual alternators please use "frame mount" instead.

Important: Aluminum straight thread fittings are made for no more than 60 inch pounds of torque

This is the latest installation video with updated fittings.

NEW installation video (latest installation video)

This installation video is for an older version of our kit with different fittings but the concept is the same.

Installation Video (old installation video)

------------------------

3 tips for getting pressure port fitting installed with hard-line in the way.

Watch pressure port installation video.

Order optional fitting #E452MF ($10) mentioned in video here.

------------------------
