Dodge 3.0L Ram 1500 EcoDiesel Bypass Oil Filter Kit

Dodge Ram 1500 EcoDiesel 3.0L Bypass Oil Filter Kit

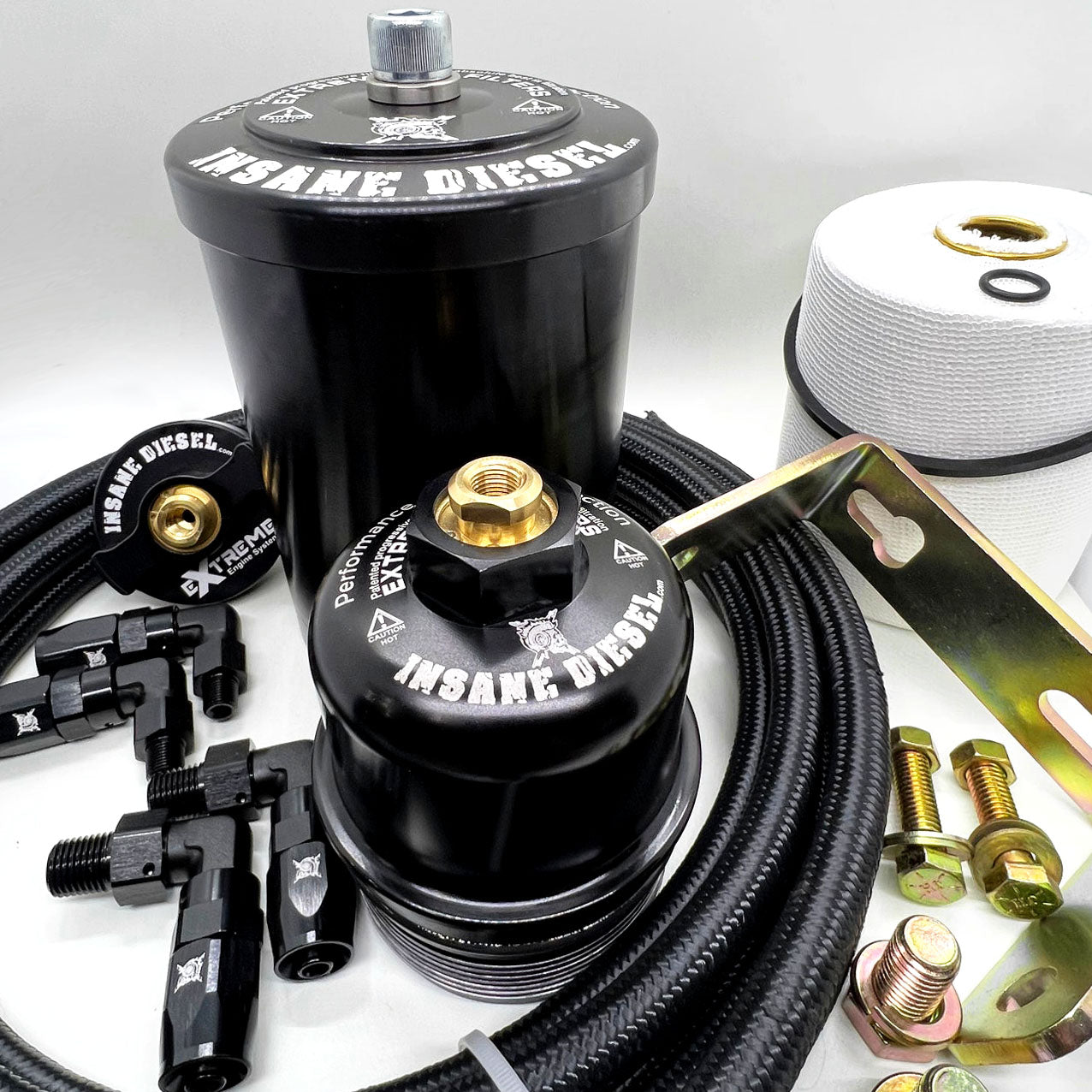

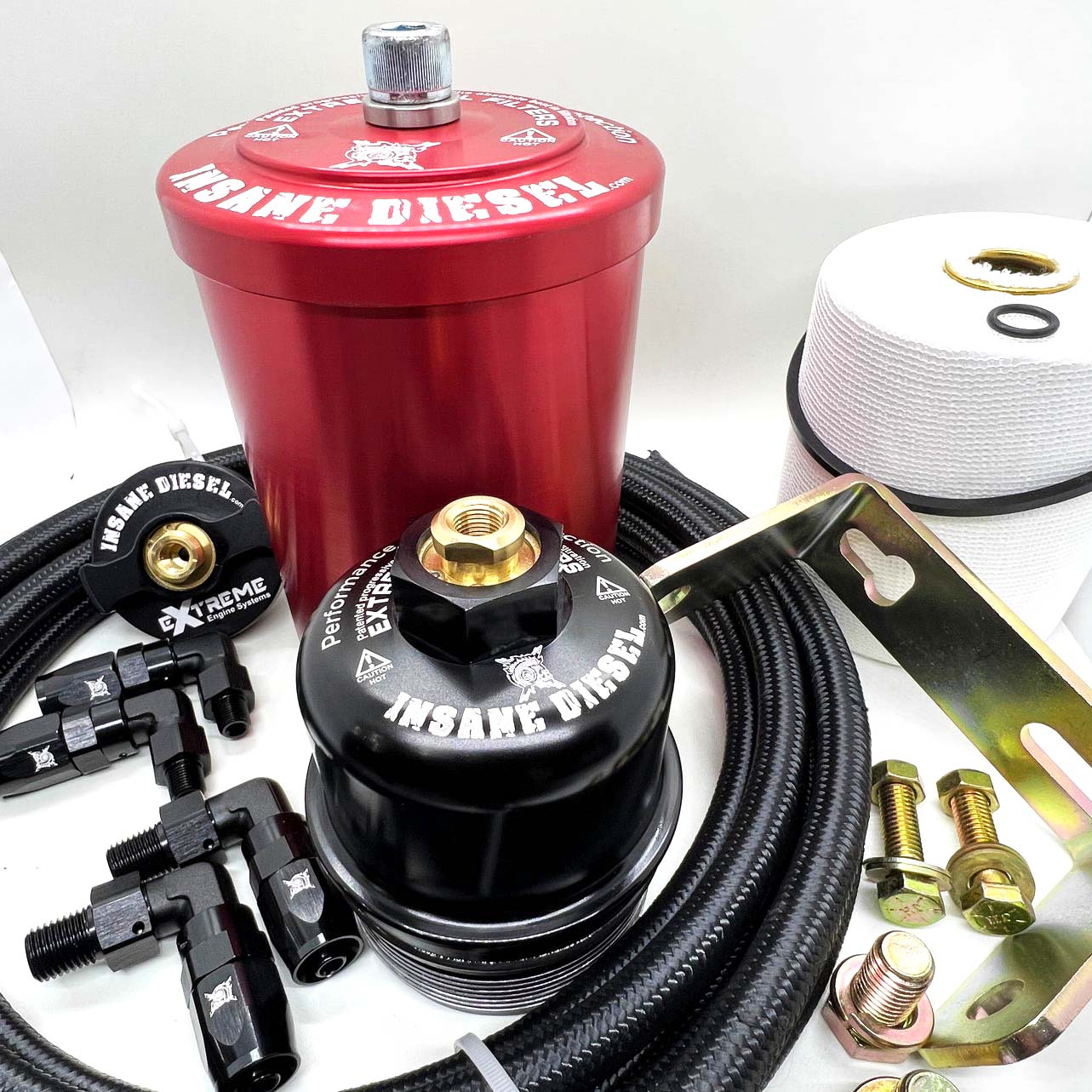

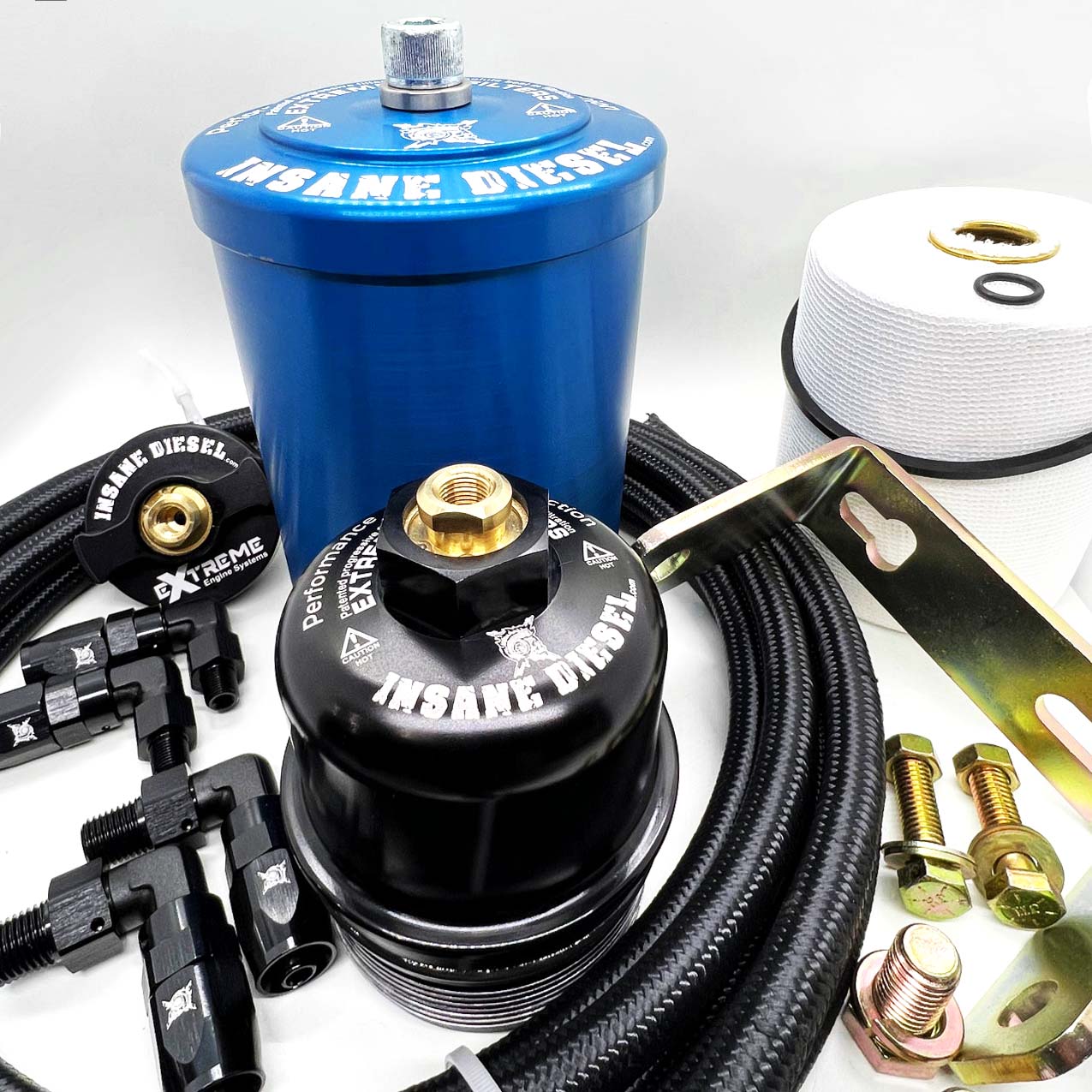

Parts Included In This Kit

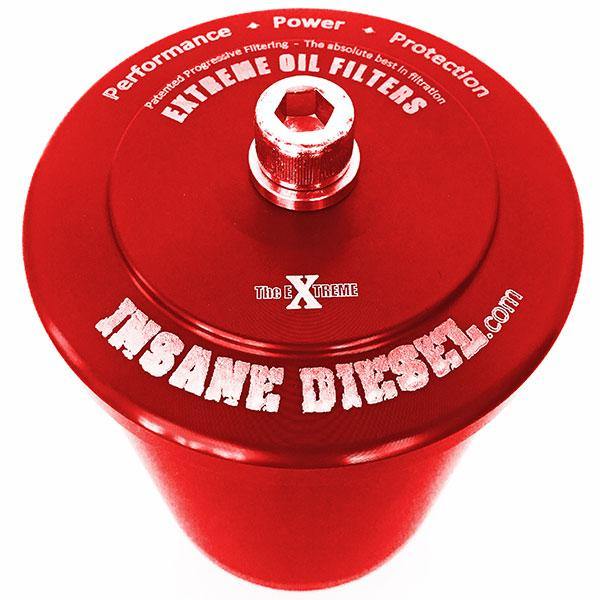

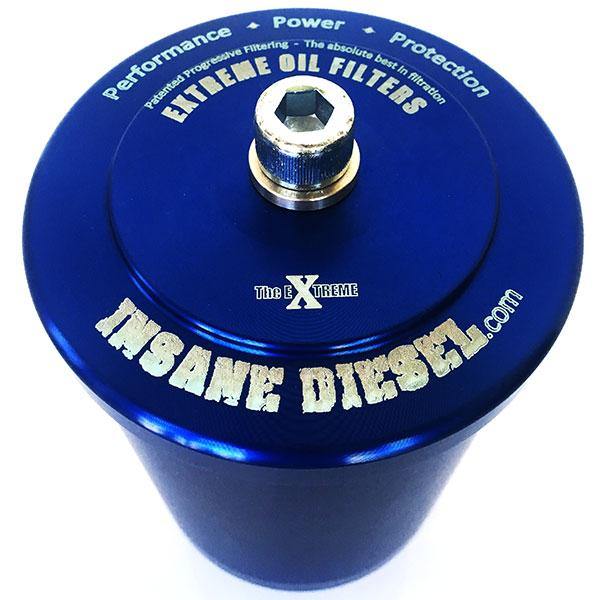

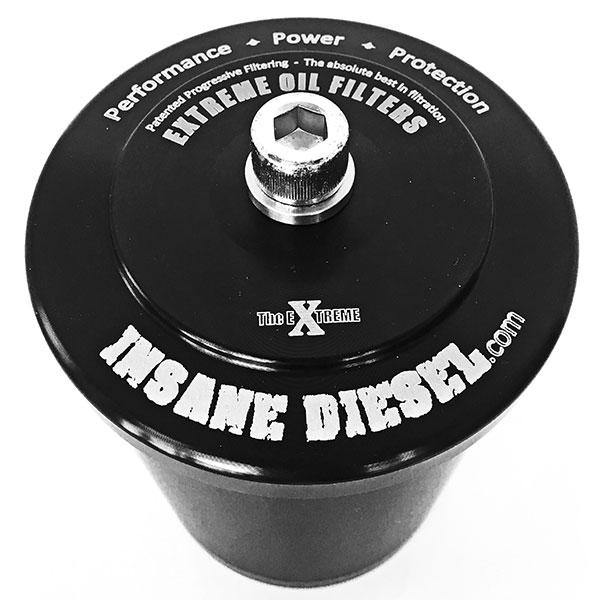

• 1 EXTREME 2 bypass oil filter housing (HX2SHBK) (HX2SHBLU) (HX2SHRED)
• 1 EXTREME 2 filter element (EX2ME) with orings (GX1/2)
• 2 In/Out fittings (AN06-04MS90)

Pressure Port Option – 2014–2019

• 1 Tee fitting system (TM1010B) with washer (D10) and fittings (AN06-02MP90 + AN06-06FJ)
• 1 Filter cap (PCED30) with fitting (AN06-02MS90)

Pressure Port Option – 2020 and Newer

• 1 Tee fitting system (TM1415B) with washer (D14) and fittings (AN06-02MP90 + AN06-06FJ)
• 1 Filter cap (PCED30) with fitting (AN06-02MS90)

Return Port

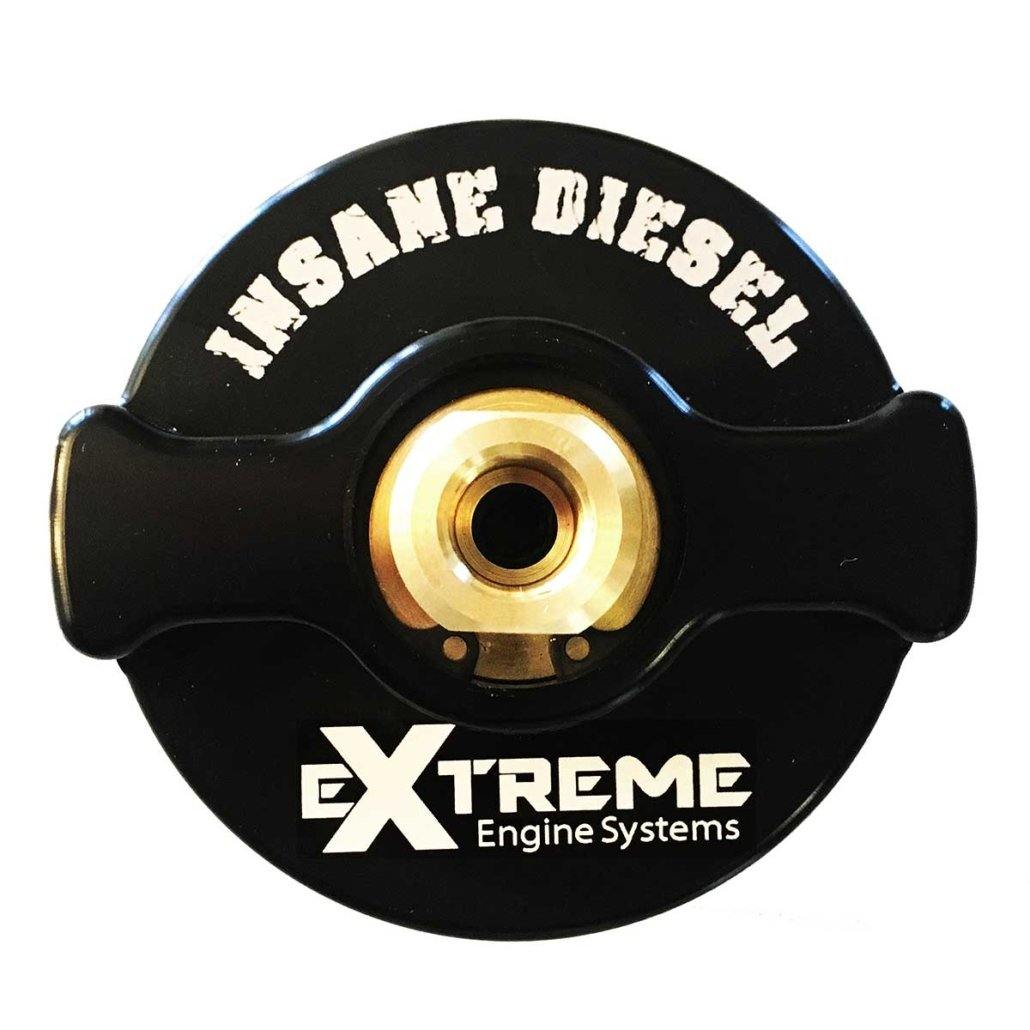

• 1 Oil filler cap (FLLCEDO) with oring (OED) and fitting (AN06-02MS90)
• 9ft of hose to be cut to your preference (LW06BK)

Bracket Options

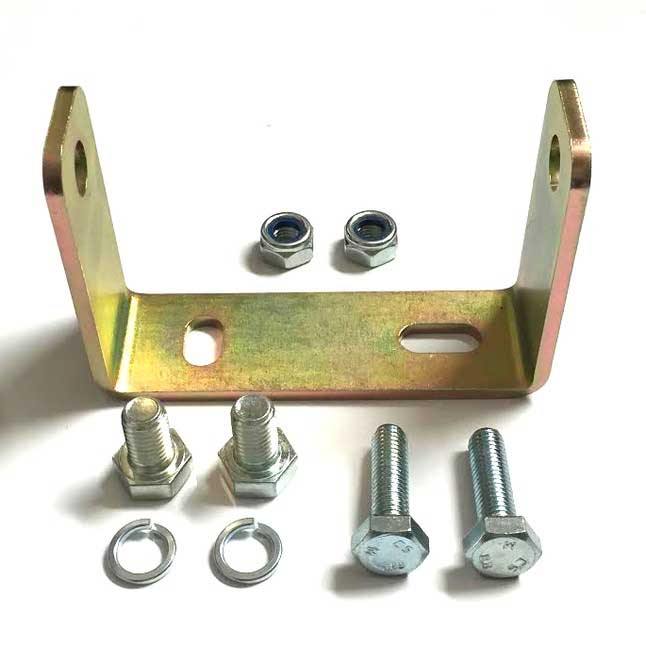

• 1 Suspension mounting bracket and bracket hardware (ZBrckX12)
• 1 Under the hood bracket (UTH-E)

Important Notes Regarding GEN4 and GEN5 Compatibility:

• Must use the following filters with our oil pressure cap:

  • Mopar Filter part #68492616AA
    K and P Filter S91

• Our filter cap w/ pressure ports is compatible with ALL EcoDiesel 3.0 engines (even 2020+ models), but you must snap in a 2014-2019 stock filter  with our filter cap (even for newer 2020+ models). Don't forget to place the o-ring that comes with new stock filter on our filter cap too.


•  Owners of 2020-Newer models now have the option to select the tee fitting pressure port, which gains access to the oil pressure supply through your vehicle's oil pressure sensor.

• The Suspension mount option is not compatible with engines that have air suspension cable. The "under the hood" bracket is recommended for this type of vehicle.


• Under-the-hood bracket mount requires modification to the bracket: cutting, drilling, trimming of the vinyl cover, and bolts. Watch this video to see a fan made description of this mounting location



Installation Guide:

Installation Guide PDF

IMPORTANT: Do not exceed the torque specs:
• Tapered fittings torque specs: do not exceed 10ft lbs to 12ft lbs.
• Straight fittings torque specs: do not exceed 60 in lbs

Mounting Examples:

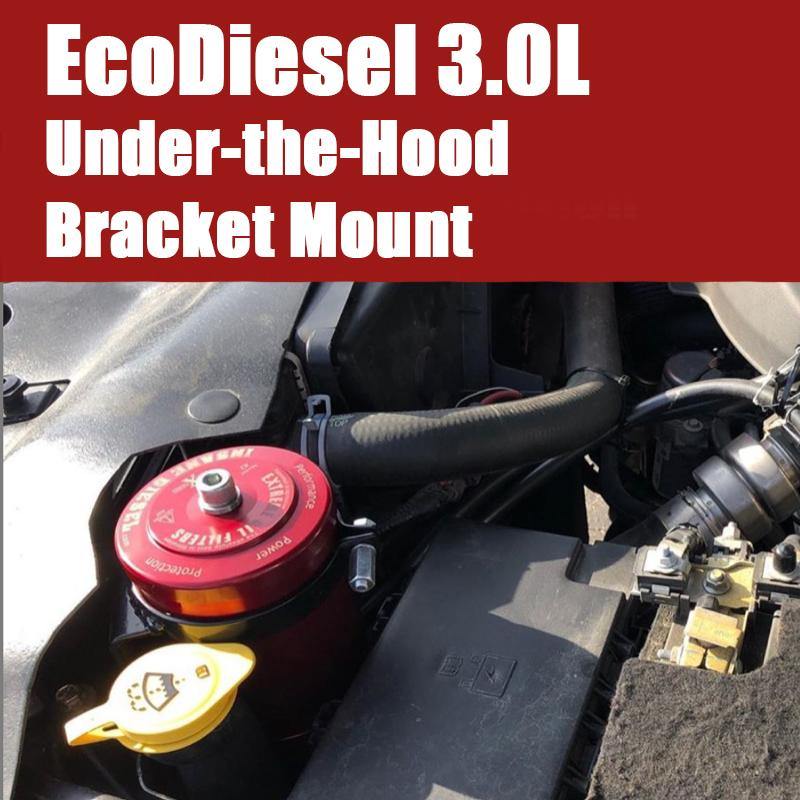

Under-the-hood bracket mount: watch example video

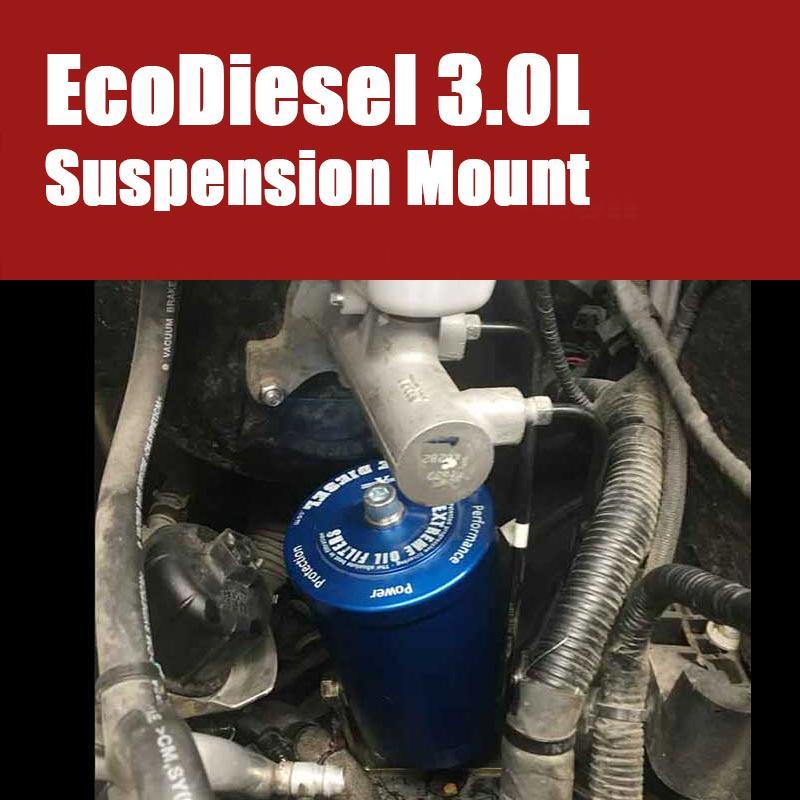

Suspension mount:
