Dodge 2.8L Cummins Diesel Bypass Oil Filter Kit

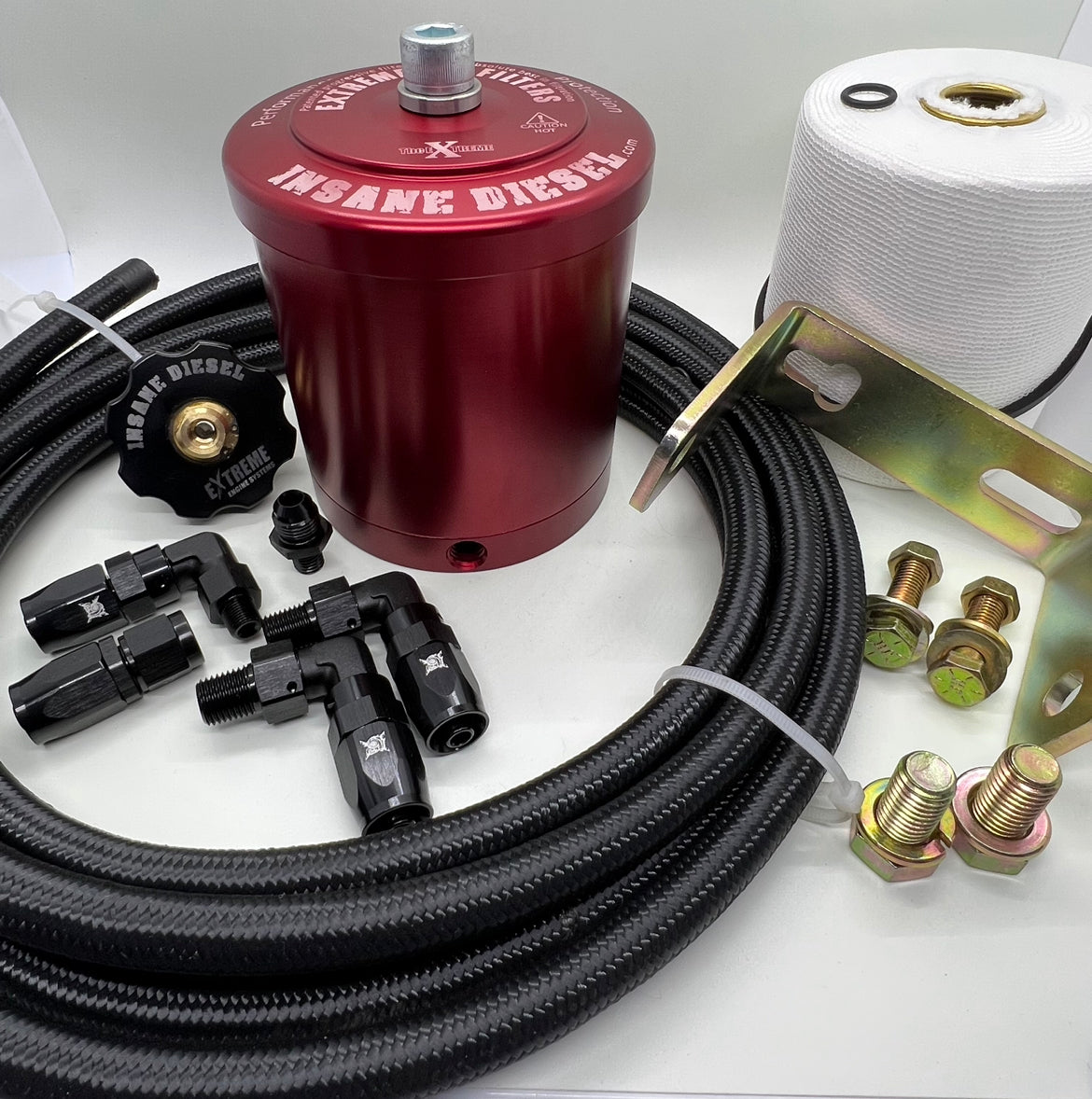

Parts Included In This Kit

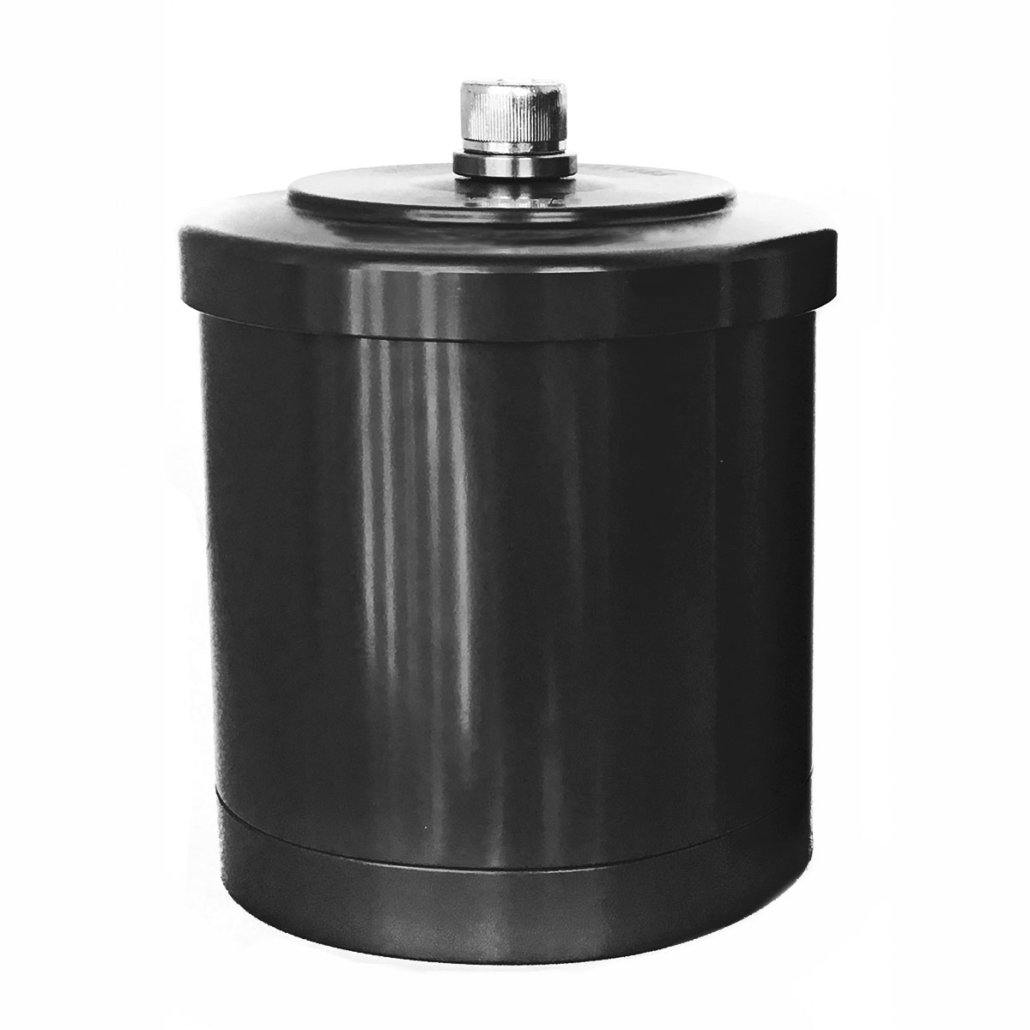

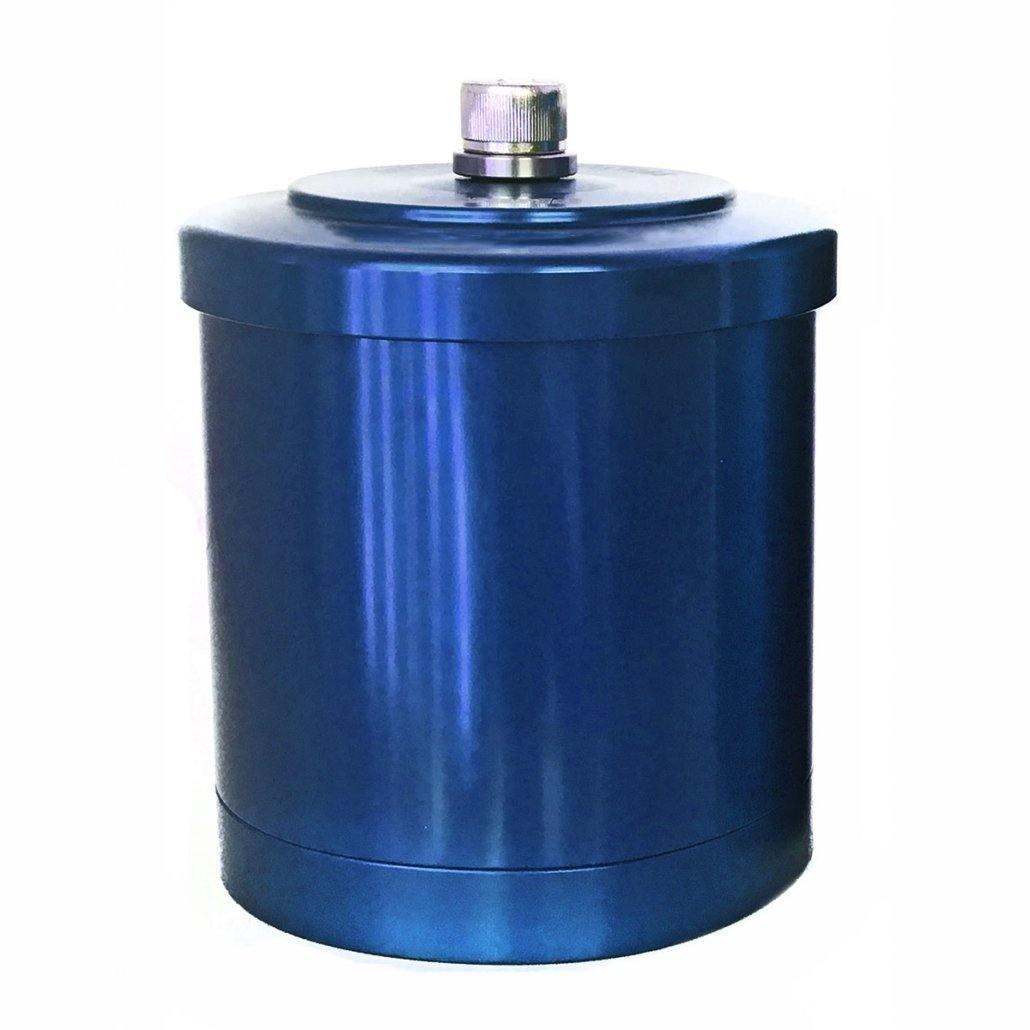

• 1 EXTREME 1 bypass oil filter housing (HX1SHBK) (HX1SHBLU) (HX1SHRED)
• 1 EXTREME 1 filter element (EX1SE) with o-rings (GX1/2)
• 2 In/Out fittings (AN06-04MS90)
• 12ft of hose you can cut to your preference (LW06BK)

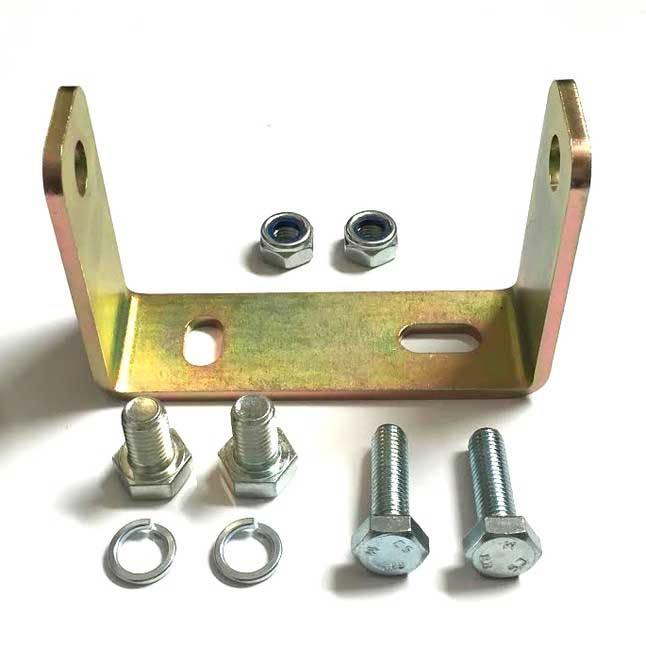

• 1 Mounting bracket with hardware (ZBrckX12)

Pressure Port

• 1 Oil pressure fitting (AN06-10MMx1.0) with washer (D10) and fitting (AN06-06FJ)

Return Port

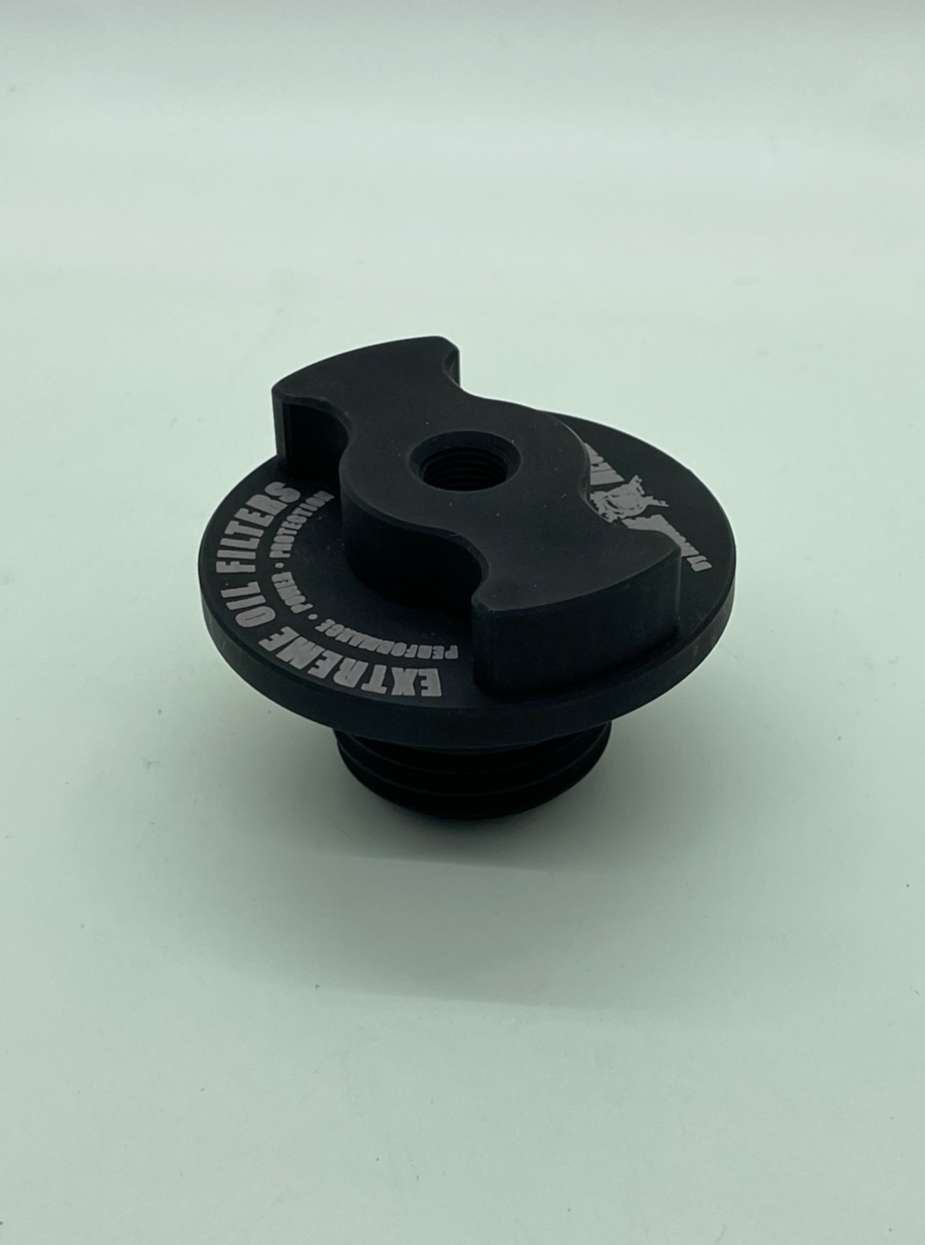

• 1 Oil filler cap (FLLCCO) includes o-ring (OCC) with fitting (AN06-02MS90)

Installation:

Important: Aluminum straight thread fittings are made for no more than 60 inch pounds of torque.

• Please refer to this custom installation and mounting guide for insight on how to mount our filter: https://insanedieselusa.com/pages/custom-installation-mounting-details

• Refer to our general installation guides for information on how to prepare to install our filter: https://insanediesel.com/pages/installation-guides

• Pressure port location is seen in the image below. The oil is easily returned through our oil filler cap.

• Installation/assembly required by professional mechanic
