AUDI 3.0L TDI Bypass Oil Filtration Kit

AUDI TDI Bypass Oil Filtration Kit

2009-2015 3.0 TDI

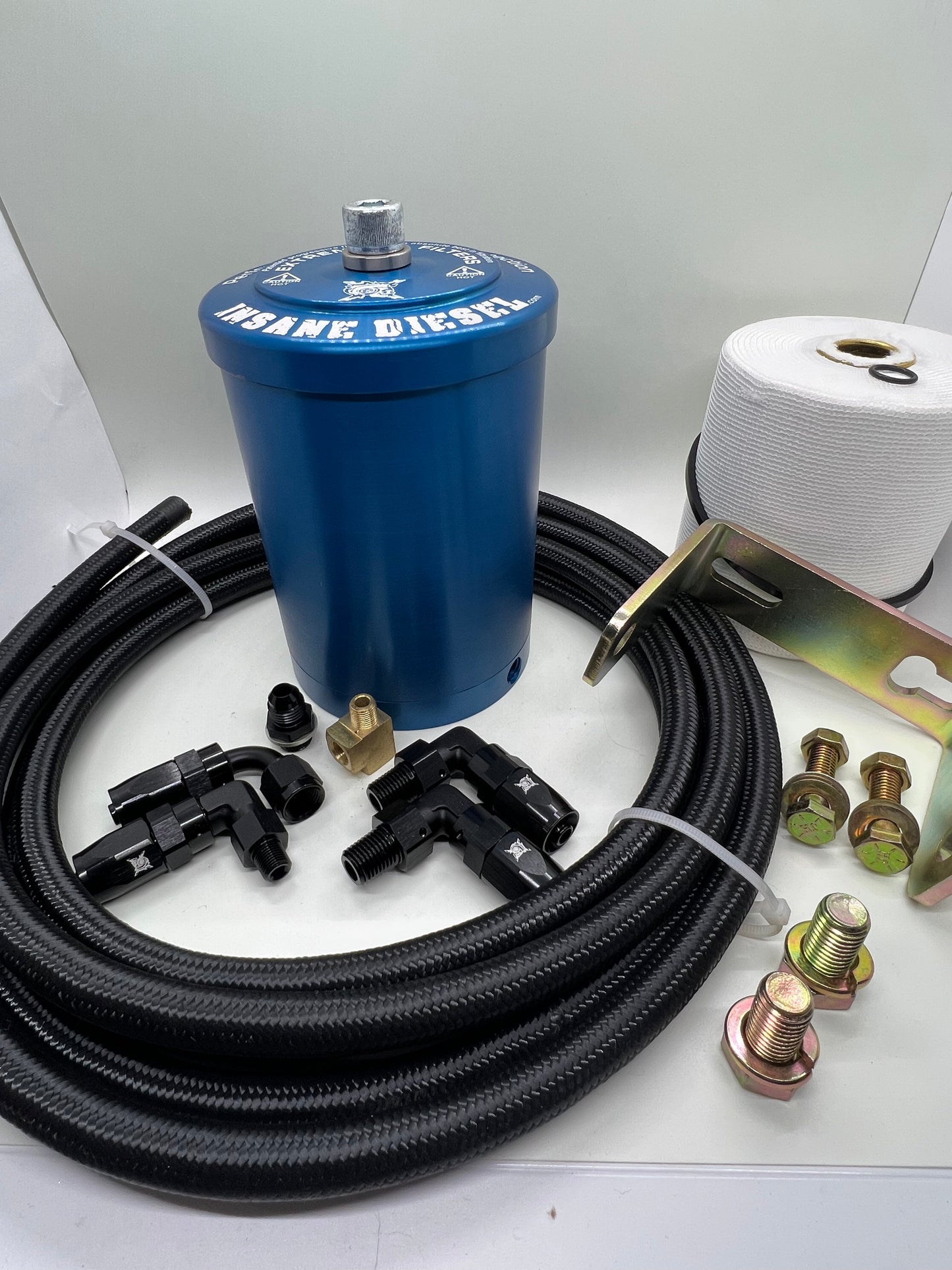

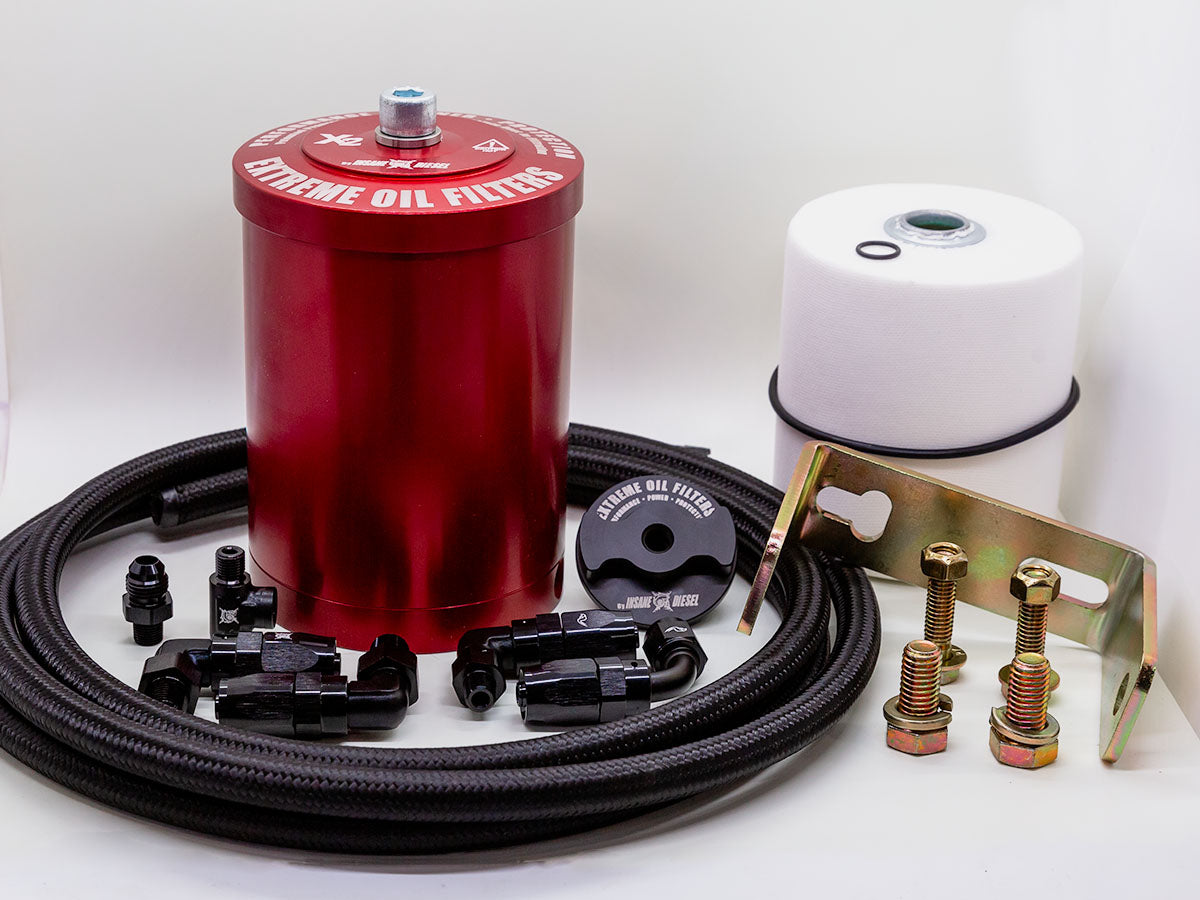

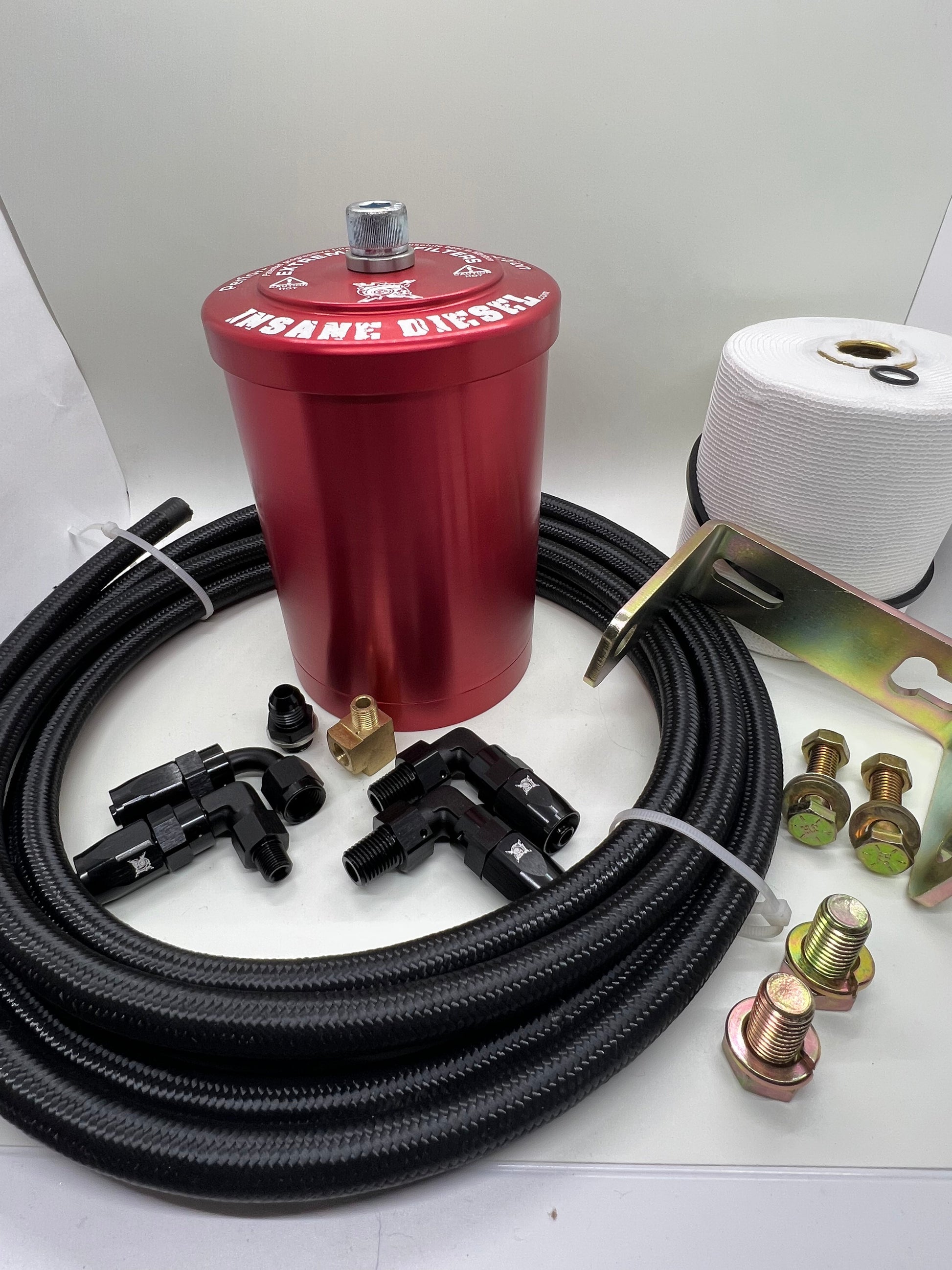

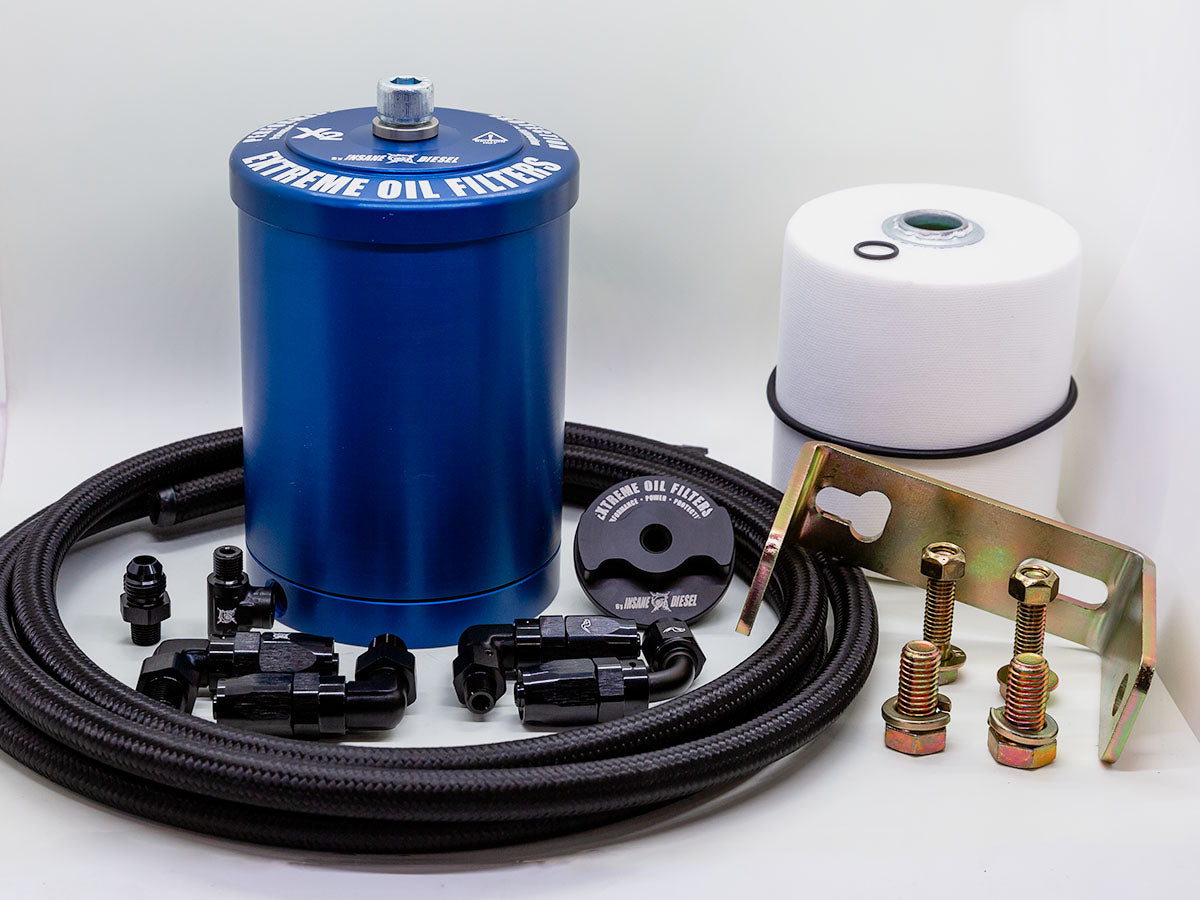

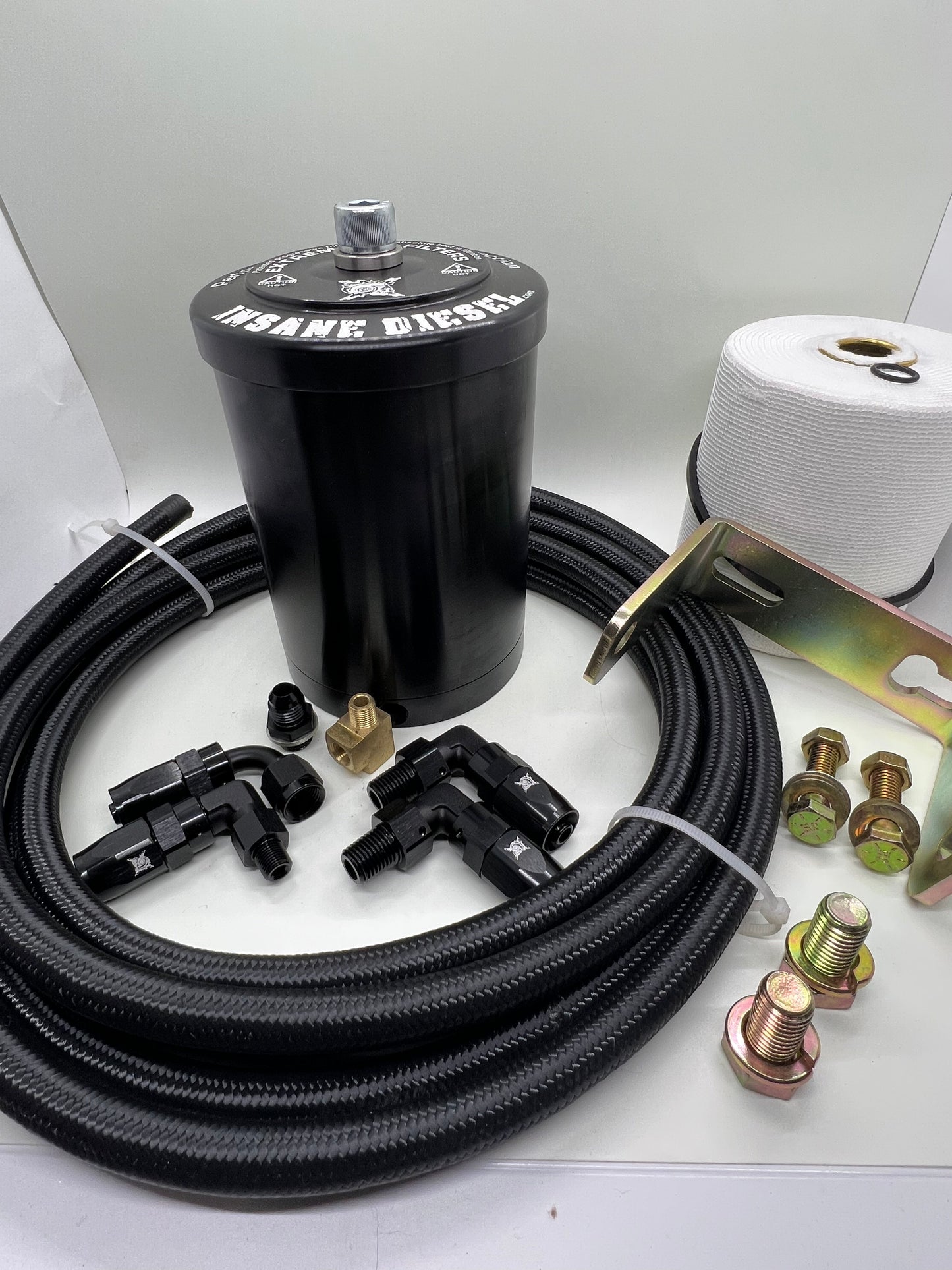

Parts Included In This Kit

• 1 EXTREME 2 bypass oil filter housing (HX2SHBK) (HX2SHBLU) (HX2SHRED)
• 1 EXTREME 2 filter element (EX2ME) with o-rings (GX1/2)
• 2 In/Out fittings (AN06-04MS90)
• 9ft of hose you can cut to your preference (LW06BK)
• 1 Mounting bracket with hardware (ZBrckX12)

Pressure Port

• 1 Tee fitting system (TM10) with washer (D10) and fittings (AN06-02MP90 + AN06-02MP + AN06-06FJ)

Return Port

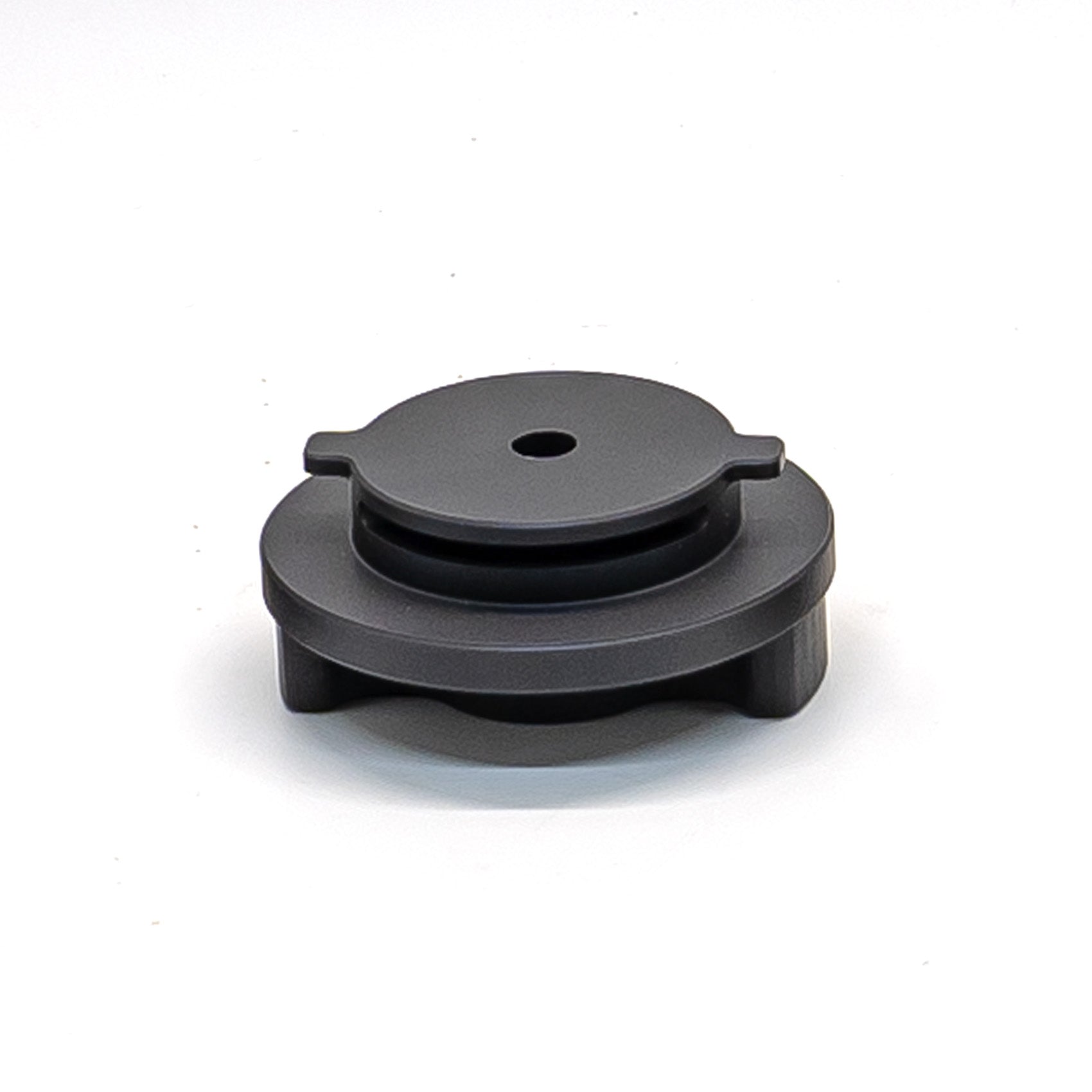

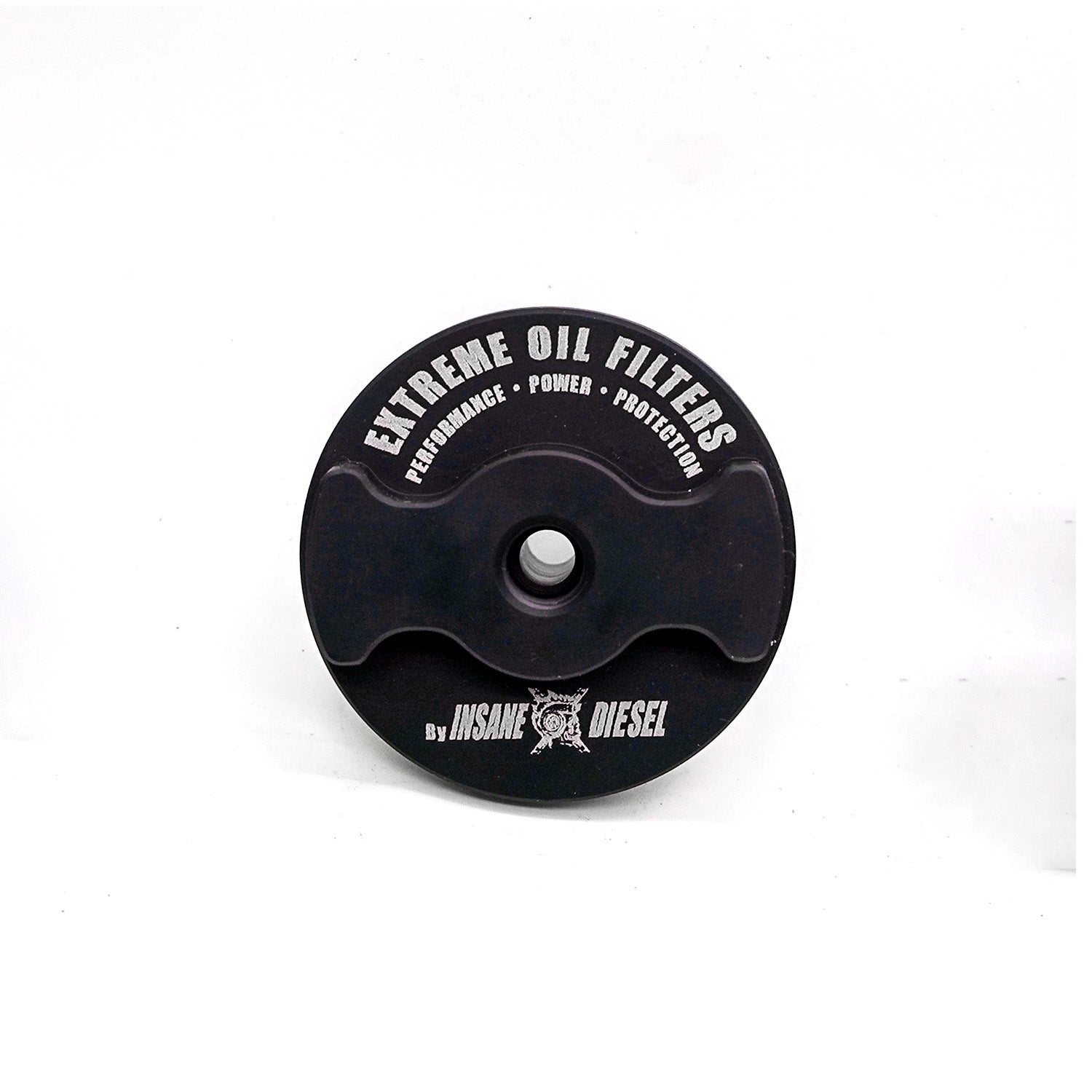

• 1 Oil filler cap (FLLCVW02) with gasket (GVW) and fitting (AN06-02MS90)
  (replaces stock cap #06B103485ABCDJH)

Installation Guide:

Important: Aluminum straight thread fittings are made for no more than 60 inch pounds of torque

• If you need help verifying the compatibility of this kit please fill out this form

• This kit does not have an official mounting location yet, please refer to the "custom installations and mounting details"

• Watch the general installation video for more information

• Installation/assembly required by professional mechanic

BENEFITS OF ULTRA-FINE OIL FILTRATION
